Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 14.16 | |
General part information

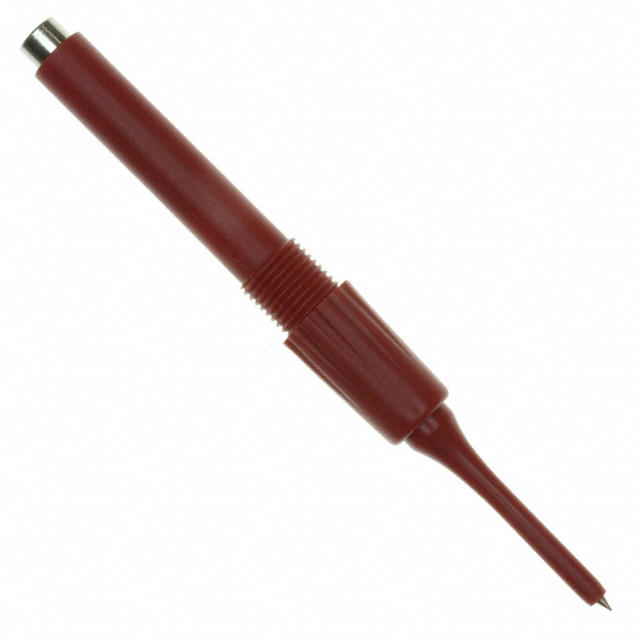

20 mA Standard Tip, Fused Probe, 0.080" (2.03mm) Dia Red
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | A083R | A083 Series |
|---|---|---|
| Color | Red | Red, Black |
| Connection Type | Female Socket (Jack), Banana | Female Socket (Jack), Banana |
| Current Rating (Amps) | 20 mA | 20 mA |
| Includes | Fuse Holder | Fuse Holder |
| Length - Overall [x] | 4.02 " | 4.02 " |
| Length - Overall [x] | 102 mm | 102 mm |
| Length - Tip [x] | 0.08 in | 0.08 in |
| Length - Tip [x] | 2 mm | 2 mm |
| Material - Body | Plastic | Plastic |
| Quantity | 1 Box | 1 Box |
| Ratings | CAT III | CAT III |
| Ratings | 1000 V | 1000 V |
| Tip Type | Standard Tip, Fused Probe | Standard Tip, Fused Probe |
| Tip Type [diameter] | 2.03 mm | 2.03 mm |
| Tip Type [diameter] | 0.08 in | 0.08 in |
SET PROD GS38 COMPLIANT 1000V
| Part | Includes | Length - Tip [x] | Length - Tip [x] | Current Rating (Amps) | Tip Type [diameter] | Tip Type | Tip Type [diameter] | Connection Type | Material - Body | Length - Overall [x] | Length - Overall [x] | Ratings | Ratings | Quantity | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TPI (Test Products Int) A083R | Fuse Holder | 0.08 in | 2 mm | 20 mA | 2.03 mm | Fused Probe, Standard Tip | 0.08 in | Banana, Female Socket (Jack) | Plastic | 4.02 " | 102 mm | CAT III | 1000 V | 1 Box | Red |
TPI (Test Products Int) A083B | Fuse Holder | 0.08 in | 2 mm | 20 mA | 2.03 mm | Fused Probe, Standard Tip | 0.08 in | Banana, Female Socket (Jack) | Plastic | 4.02 " | 102 mm | CAT III | 1000 V | 1 Box | Black |
