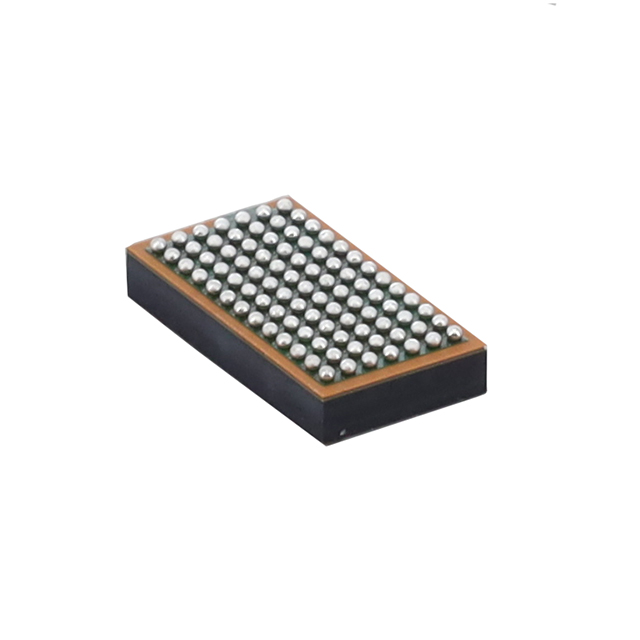

LTM8051IY#PBF
ActiveQUAD 40VINSILENT SWITCHER ΜMODULE REGULATOR WITH CONFIGURABLE 1.2A OUTPUT ARRAY
Deep-Dive with AI
Search across all available documentation for this part.
LTM8051IY#PBF
ActiveQUAD 40VINSILENT SWITCHER ΜMODULE REGULATOR WITH CONFIGURABLE 1.2A OUTPUT ARRAY
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM8051IY#PBF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.5 A |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 91-FBGA |
| Size / Dimension [x] | 11.3 mm |
| Size / Dimension [x] | 0.44 " |
| Size / Dimension [y] | 0.25 in |
| Size / Dimension [y] | 6.3 mm |
| Size / Dimension [z] | 2.4 mm |
| Size / Dimension [z] | 0.09 " |
| Supplier Device Package | 91-BGA |
| Supplier Device Package [x] | 11.25 |
| Supplier Device Package [y] | 6.25 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output 1 [Max] | 8 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 26.07 | |
| 10 | $ 19.28 | |||
| 25 | $ 17.54 | |||
| 80 | $ 15.87 | |||
| 100 | $ 14.60 | |||
| 230 | $ 14.74 | |||
| 440 | $ 14.60 | |||
Description
General part information
LTM8051 Series
The LTM8051 is quad 40VIN, 1.2A step-down Silent Switcher μModule®regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 3MHz. Included in the package are the controllers, power switches, inductors, and support components. Operating over a wide input voltage range, the LTM8051 supports output voltages from 0.8V to 8V, and a switching frequency range of 300kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design. TheLTM8051 product videois available on website.The LTM8051 is packaged in a compact (6.25mm × 11.25mm × 2.22mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8051 is available with SnPb (BGA) or RoHS compliant.ApplicationsAutomated Test EquipmentDistributed Supply RegulationIndustrial SuppliesMedical Equipment
