FI-S25S

Active

JAE Electronics

CONN PLUG HSG 25POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 25POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S25S

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Connector Type	Number of Positions Loaded	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Material	Contact Finish - Post	Style	Number of Rows	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Termination	Features	Shrouding	Mounting Type	Contact Shape	Contact Finish - Mating	Fastening Type	Contact Type	Material Flammability Rating	Contact Termination	Pitch [x]	Pitch [x]	Insulation Material	Color	Note
JAE Electronics FI-S25P-HFE-E1500	Receptacle	All	1 A	1.25 mm	0.049 in	1.8 mm	0.071 "	Copper Alloy	Tin or Tin-Alloy	Board to Cable/Wire	1	200 V	-40 °C	80 C	Beige	Solder	Solder Retention	Shrouded - 4 Wall	Surface Mount Right Angle	Square	Gold	Friction Lock	Male Pin	UL94 V-0
JAE Electronics FI-S25S	Plug										1		-40 °C	80 C					Free Hanging (In-Line)			Friction Lock	Female Socket		Crimp	0.049 in	1.25 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	Contacts Not Included
JAE Electronics FI-S25P-HFE	Receptacle	All	1 A	1.25 mm	0.049 in	1.8 mm	0.071 "	Copper Alloy	Tin or Tin-Alloy	Board to Cable/Wire	1	200 V	-40 °C	80 C	Beige	Solder	Solder Retention	Shrouded - 4 Wall	Surface Mount Right Angle	Square	Gold	Friction Lock	Male Pin	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

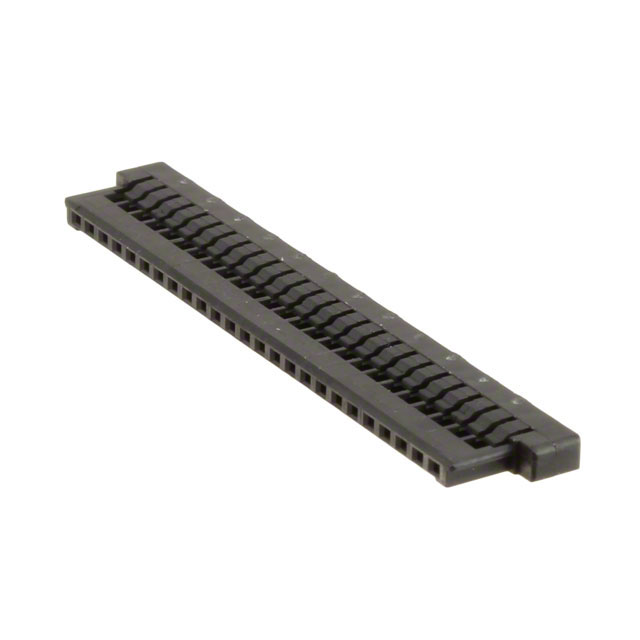

25 Rectangular Connectors - Housings Plug Black 0.049" (1.25mm)
