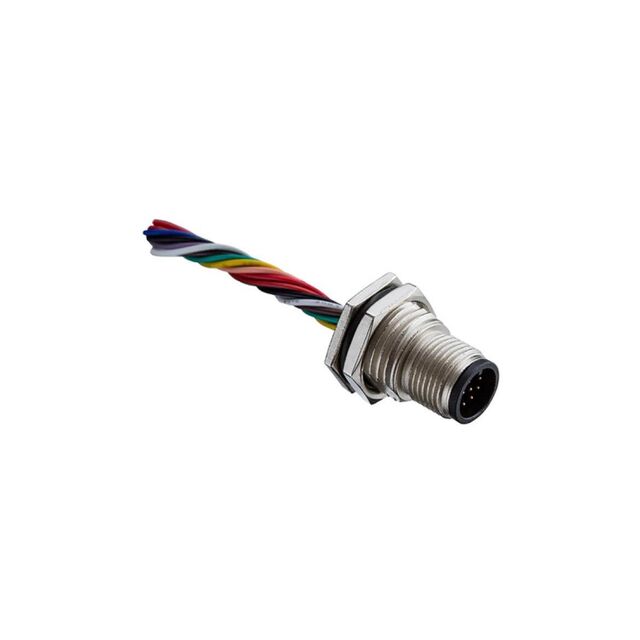

M12A-10PMMS-SF8C15

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, MALE CONNECTOR, MALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, REC

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, MALE CONNECTOR, MALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, REC

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-10PMMS-SF8C15

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-10
Shielding	Shielded
Termination	Wire Leads
Voltage Rating	30 VAC

Part	Contact Material	Orientation	Contact Finish - Mating	Current Rating (Amps)	Termination	Mounting Feature	Insert Material	Shell Finish	Connector Type	Voltage Rating	Shell Size - Insert	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Material	Number of Positions	Shielding	Color
Amphenol LTW M12A-10PMMS-SF8C15	Copper Alloy	A	Gold	1.5 A	Wire Leads	Bulkhead - Front Side Nut	Polyamide (PA) Nylon Glass Filled	Nickel	Male Pins Plug	30 VAC	M12-10	Metal	-25 °C	85 °C	IP68 IP69K	Zinc Alloy	12	Shielded	Silver
Amphenol LTW M12A-10PMMS-SH8002	Copper Alloy	A	Gold	1.5 A		Bulkhead - Rear Side Nut	Polyamide (PA) Nylon Glass Filled	Nickel	Male Pins Receptacle	30 VAC	M12-10	Metal	-40 °C	105 ░C	IP68 IP69K	Zinc Alloy	10	Shielded	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug, Male Pins Wire Leads
