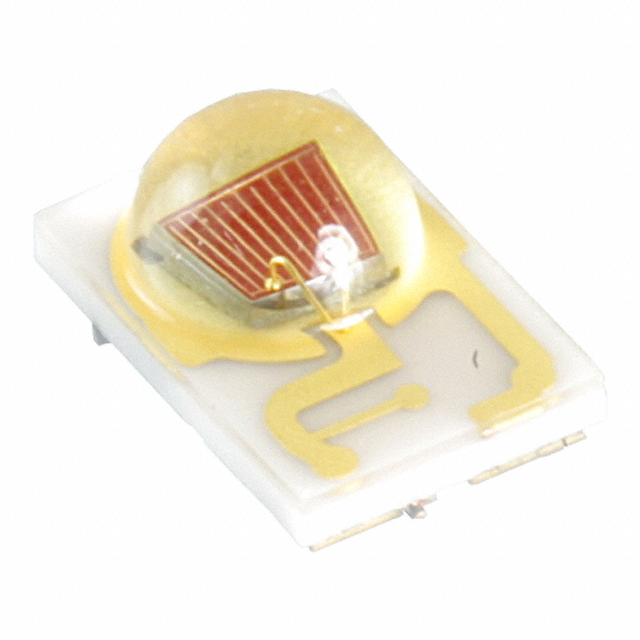

LXM2-PH01-0070
ActiveLumileds
LED UNI-COLOR RED ORANGE 72LM CHIP LED 3-PIN SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LXM2-PH01-0070
ActiveLumileds
LED UNI-COLOR RED ORANGE 72LM CHIP LED 3-PIN SMD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LXM2-PH01-0070 |
|---|---|
| Color | Red-Orange |
| Current - Max [Max] | 700 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Lumens/Watt @ Current - Test | 98 lm/W |
| Luminous Flux @ Current/Temperature | 72 lm |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.49 mm |
| Size / Dimension [y] | 3.05 mm |
| Size / Dimension [y] | 0.12 " |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 8 °C/W |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength | 617 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.50 | |
| 10 | $ 3.08 | |||
| 100 | $ 2.36 | |||
| 500 | $ 2.07 | |||
| Digi-Reel® | 1 | $ 4.50 | ||
| 10 | $ 3.08 | |||
| 100 | $ 2.36 | |||
| 500 | $ 2.07 | |||
| Tape & Reel (TR) | 1000 | $ 1.98 | ||
| 2000 | $ 1.91 | |||
| 3000 | $ 1.87 | |||
| 5000 | $ 1.84 | |||
Description
General part information
LXM2 Series
Deliver more usable light and higher flux density
Optimize applications to reduce size and cost
Small footprint to tightly pack the LEDs for mixing
