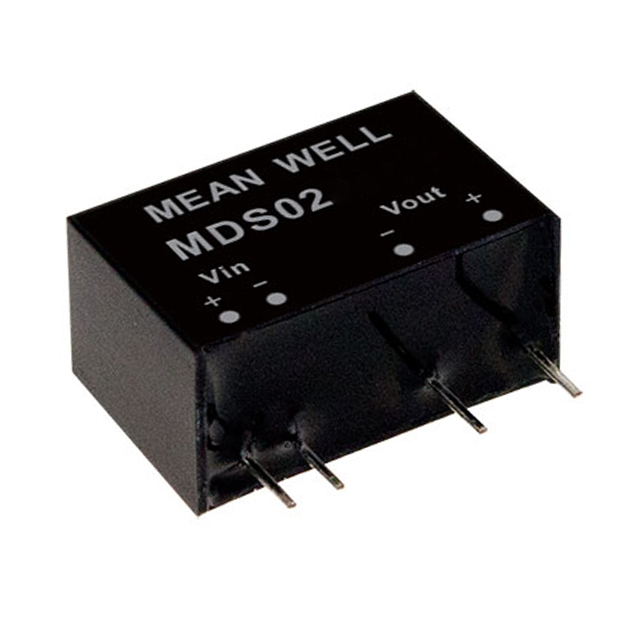

MDS02 Series

Part	Power (Watts)	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Output 1	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Current - Output (Max)	Number of Outputs	Type	Package Name	Package Leads	Applications	Features	Efficiency	Voltage - Isolation	Voltage - Input (Min)	Voltage - Input (Max)
MEAN WELL USA Inc. MDS02N-05	2 w	Through Hole	-40 °C	85 °C	5 V	0.39 in	0.49 in	0.77 in	400 mA	1	Isolated Module	7-SIP 7-SIP Module	4 Leads	Medical	SCP	80 %	6 kV	21.6 V	26.4 V
MEAN WELL USA Inc. MDS02L-12	2 w	Through Hole	-40 °C	85 °C	12 V	0.39 in	0.49 in	0.77 in	167 mA	1	Isolated Module	7-SIP 7-SIP Module	4 Leads	Medical	SCP	80 %	6 kV	4.5 V	5.5 V
MEAN WELL USA Inc. MDS02N-15	2 w	Through Hole	-40 °C	85 °C	15 V	0.39 in	0.49 in	0.77 in	133 mA	1	Isolated Module	7-SIP 7-SIP Module	4 Leads	Medical	SCP	85 %	6 kV	21.6 V	26.4 V
MEAN WELL USA Inc. MDS02L-15	2 w	Through Hole	-40 °C	85 °C	15 V	0.39 in	0.49 in	0.77 in	133 mA	1	Isolated Module	7-SIP 7-SIP Module	4 Leads	Medical	SCP	79 %	6 kV	4.5 V	5.5 V
MEAN WELL USA Inc. MDS02N-12	2 w	Through Hole	-40 °C	85 °C	12 V	0.39 in	0.49 in	0.77 in	167 mA	1	Isolated Module	7-SIP 7-SIP Module	4 Leads	Medical	SCP	83 %	6 kV	21.6 V	26.4 V
MEAN WELL USA Inc. MDS02M-05	2 w	Through Hole	-40 °C	85 °C	5 V	0.39 in	0.49 in	0.77 in	400 mA	1	Isolated Module	7-SIP 7-SIP Module	4 Leads	Medical	SCP	75 %	6 kV	10.8 V	13.2 V
