8899 010500

Active

Belden Inc.

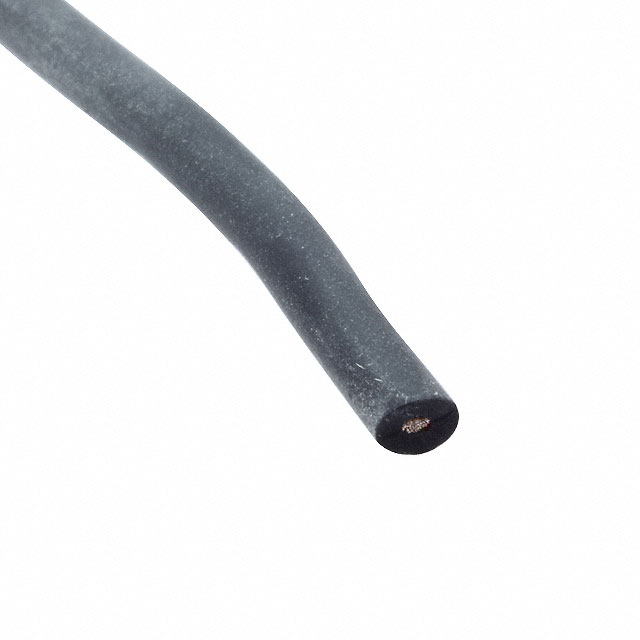

TEST LEAD 18AWG BLACK 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

8899 010500

Active

Belden Inc.

TEST LEAD 18AWG BLACK 500'

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8899 010500

Conductor Material	Copper, Tinned
Conductor Strand [custom]	65
Conductor Strand [custom]	36
Jacket (Insulation) Diameter [diameter]	0.144 in
Jacket (Insulation) Diameter [diameter]	3.66 mm
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	1.24 mm
Jacket (Insulation) Thickness	0.049 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Voltage	5 kVDC
Wire Gauge	18 AWG

8899 Series

Part	Length [x]	Length [x]	Jacket (Insulation) Material	Wire Gauge	Conductor Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
Belden Inc. 8899 002100	30.5 m	100 ft	Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Red	0.144 in	3.66 mm
Belden Inc. 8899 010100	30.5 m	100 ft	Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Black	0.144 in	3.66 mm
Belden Inc. 8899 010U500	152.4 m	500 '	Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Black	0.144 in	3.66 mm
Belden Inc. 8899 00225	7.62 m	25 ft	Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Red	0.144 in	3.66 mm
Belden Inc. 8899 006100	30.5 m	100 ft	Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Blue	0.144 in	3.66 mm
Belden Inc. 8899 002500	152.4 m	500 '	Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Red	0.144 in	3.66 mm
Belden Inc. 8899 010500	152.4 m	500 '	Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Black	0.144 in	3.66 mm
Belden Inc. 8899 005100	30.5 m	100 ft	Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Green	0.144 in	3.66 mm
Belden Inc. 8899 002U1000			Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Red	0.144 in	3.66 mm	1000 ft	304.8 m
Belden Inc. 8899 005500	152.4 m	500 '	Rubber	18 AWG	Copper Tinned	5 kVDC	65	36	-40 °C	80 C	1.24 mm	0.049 in	Green	0.144 in	3.66 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1220.67
		3	$ 1129.28
		5	$ 1090.11
		7	$ 1064.00

Description

General part information

8899 Series

18 AWG Test Lead Wire 65/36 Black 5000V 500.0' (152.4m)

Documents

Technical documentation and resources

Datasheet

Cabling Solutions for Industrial Applications

Datasheet
