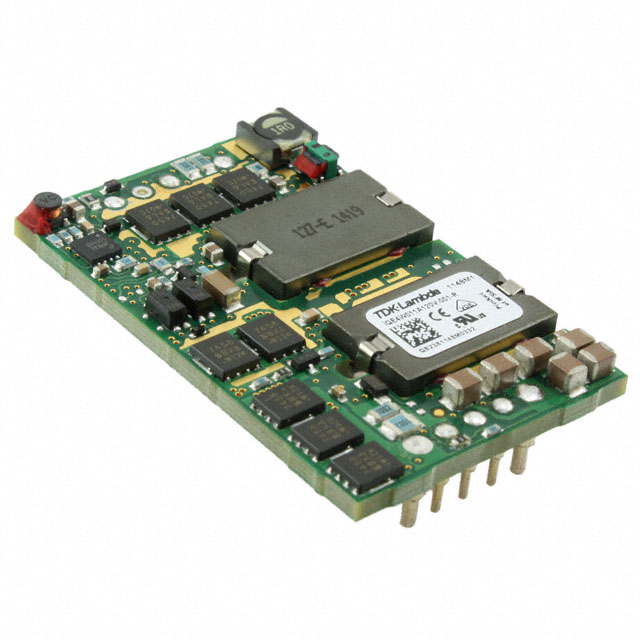

IQE4W011A120V-001-R
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, DIP, 132 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
IQE4W011A120V-001-R
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, QUARTER BRICK, DIP, 132 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IQE4W011A120V-001-R |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 11 A |
| Efficiency | 90 % |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 9.9 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Intermediate Bus Converter |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IQE4W011 Series
IQE4W011A120V-001-R is an iQE series of isolated DC-DC converter in compact with high-performance industry standard open-frame quarter footprint. The output voltage can be adjusted from -10 to +10% of nominal using the trim connection to accommodate non-standard voltages. It includes overcurrent, overvoltage and overtemperature protection. Application includes industrial, test, communication, broadcast. Certified by IEC/UL/CSA/EN 62368-1, 60950-1.
