38202-62S3-000 PL

Active

3M (TC)

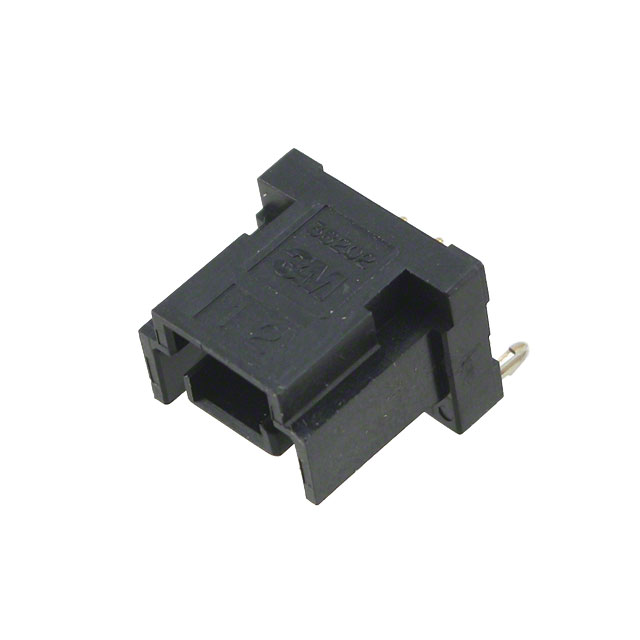

PCB RECEPTACLE, WIRE-TO-BOARD, 2.54 MM, 1 ROWS, 2 CONTACTS, THROUGH HOLE MOUNT, 382 SERIES

Search across all available documentation for this part.

Active

3M (TC)

PCB RECEPTACLE, WIRE-TO-BOARD, 2.54 MM, 1 ROWS, 2 CONTACTS, THROUGH HOLE MOUNT, 382 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	38202-62S3-000 PL

Applications	Lighting, Industrial, Automotive, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	5 A
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	13 mm
Insulation Height	0.512 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	160 V

Part	Mounting Type	Insulation Material	Style	Current Rating (Amps)	Applications	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Material	Termination	Contact Finish Thickness - Post	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Contact Shape	Contact Finish - Post	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Length - Post	Contact Length - Post	Voltage Rating	Insulation Color	Number of Positions Loaded
3M (TC) 38202-52S3-000 PL	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	5 A	Automotive General Purpose Industrial Lighting	Receptacle	0.203 Ám	8 Áin	Female Socket	13 mm	0.512 in	0.1 in	2.54 mm	Copper Alloy	Solder	Flash	Gold	Latch Holder	UL94 V-0	Square	Gold	1	-20 C	70 °C	2	2.54 mm	0.1 in	160 V	Black	All
3M (TC) 38202-62S3-000 PL	Through Hole	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	5 A	Automotive General Purpose Industrial Lighting	Receptacle	0.203 Ám	8 Áin	Female Socket	13 mm	0.512 in	0.1 in	2.54 mm	Copper Alloy	Solder	Flash	Gold	Latch Holder	UL94 V-0	Square	Gold	1	-20 C	70 °C	2	2.54 mm	0.1 in	160 V	Black	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
