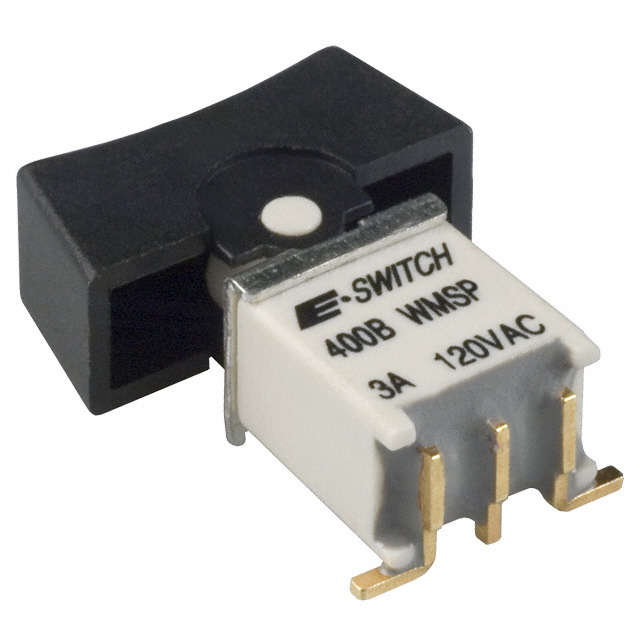

400BWMSP5R2BLKSM6QE
ActiveE-Switch
SWITCH ROCKER SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
400BWMSP5R2BLKSM6QE
ActiveE-Switch
SWITCH ROCKER SPDT 3A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 400BWMSP5R2BLKSM6QE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Off-Mom |
| Termination Style | SMD (SMT) Tab |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 450 | $ 3.82 | |
Description
General part information
400BWMSP5 Series
Rocker Switch SPDT 3A (AC/DC) 120 V Surface Mount, Right Angle
Documents
Technical documentation and resources
No documents available
