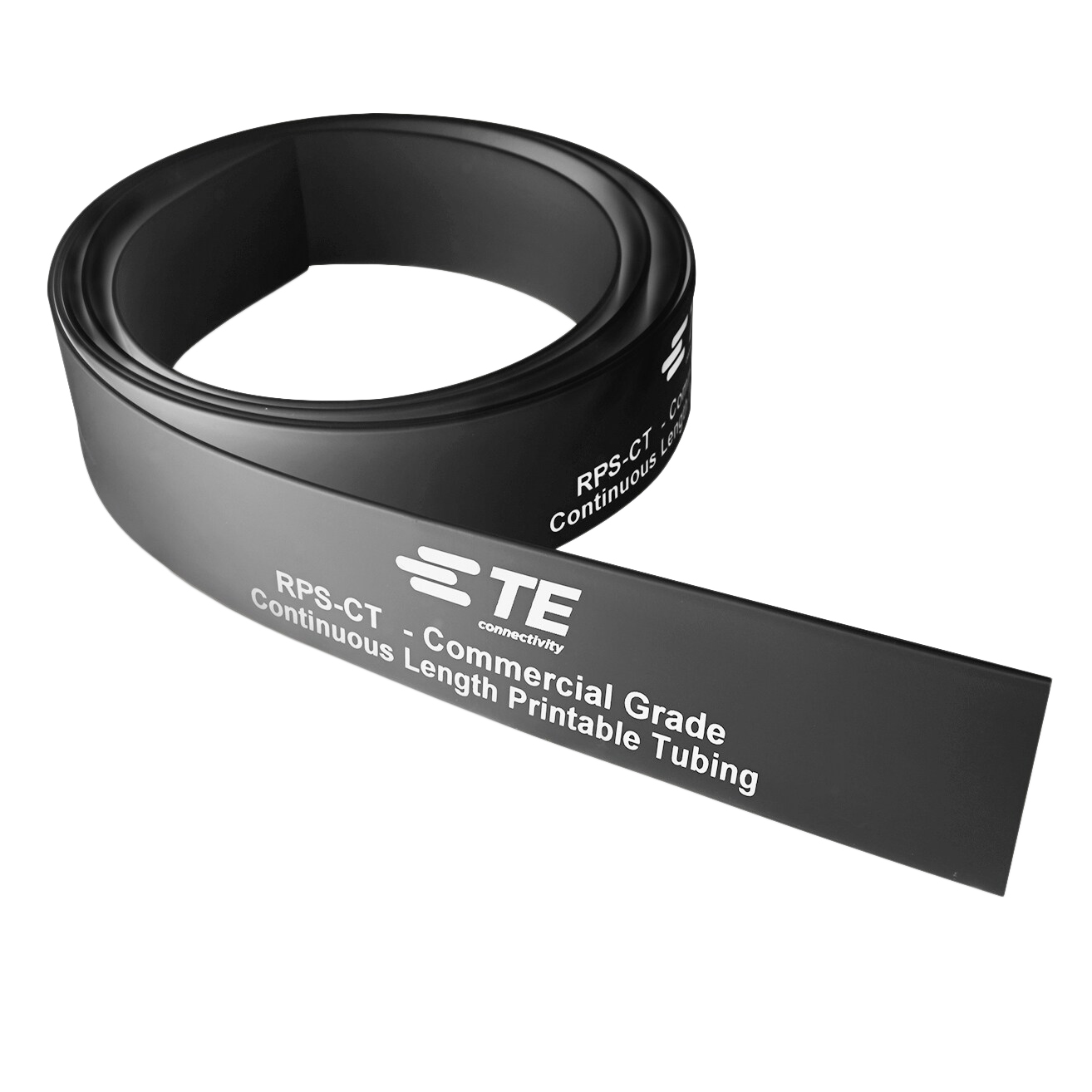

ER2170-000
ActiveTE Connectivity Raychem Cable Protection
RPS-CT-50M-25.4-OUT-0 METER
Deep-Dive with AI
Search across all available documentation for this part.
ER2170-000
ActiveTE Connectivity Raychem Cable Protection
RPS-CT-50M-25.4-OUT-0 METER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ER2170-000 |
|---|---|
| Color | Black |
| Inner Diameter - Recovered [diameter] | 0.333 " |
| Inner Diameter - Recovered [diameter] | 8.46 mm |
| Inner Diameter - Supplied [diameter] | 1 in |
| Inner Diameter - Supplied [diameter] | 25.4 mm |
| Length | 164 ft |
| Length | 50 m |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Recovered Wall Thickness [custom] | 0.025 " |
| Recovered Wall Thickness [custom] | 0.64 mm |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.52 | |
| 5 | $ 24.02 | |||
| 10 | $ 21.76 | |||
| 25 | $ 20.26 | |||
| 50 | $ 19.51 | |||
| 100 | $ 19.06 | |||
Description
General part information
ER2170 Series
Heat Shrink Tubing, Flexible 1.000" (25.40mm) 3 to 1 Black 164.0' (50.0m)
Documents
Technical documentation and resources
No documents available
