GSF1.2012.01

Active

SCHURTER Inc.

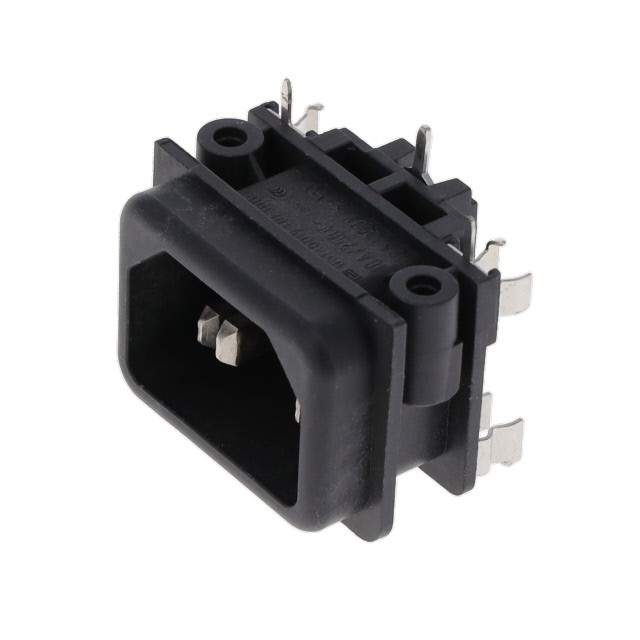

PWR ENT MOD RCPT IEC320-C14

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GSF1.2012.01	GSF1.2012 Series

Accomodates a Fuse	True	True
Approval Agency	CCC, UL, CSA, ENEC	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14

Part	Ingress Protection	Filter Type	Accomodates a Fuse	Current Rating - Appliance Inlet	Connector Type	Approval Agency	Connector Style	Voltage Rating - Appliance Inlet	Material Flammability Rating
SCHURTER Inc. GSF1.2012.01	IP40	Unfiltered - Commercial		10 A	Receptacle, Male Blades - Module	CCC, CSA, ENEC, UL	IEC 320-C14	250 VAC	UL94 V-0
SCHURTER Inc. GSF1.2012.31	IP40	Unfiltered - Commercial		10 A	Receptacle, Male Blades - Module	CCC, CSA, ENEC, UL	IEC 320-C14	250 VAC	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14

Technical documentation and resources
