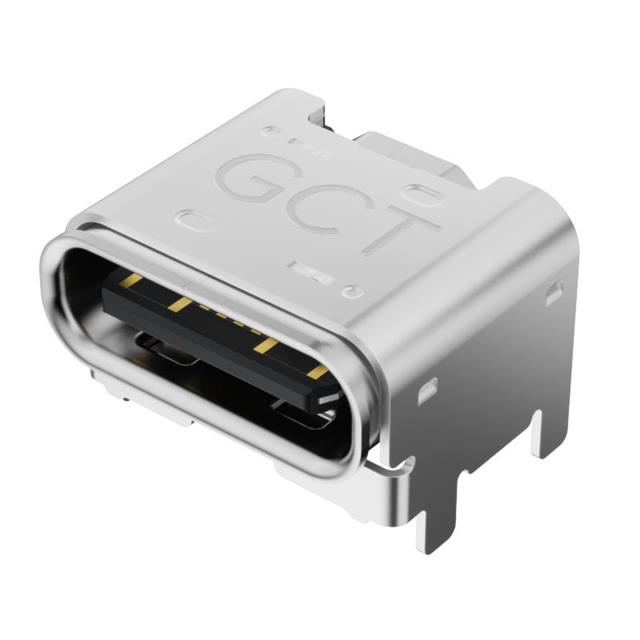

USB4800-03-A

Active

GCT

USB2.0 TYPE C RECPT SMT 16POS HO

Search across all available documentation for this part.

Active

GCT

USB2.0 TYPE C RECPT SMT 16POS HO

Technical Specifications

Parameters and characteristics for this part

Specification	USB4800-03-A

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	5 A
Features	Board Guide, Solder Retention Tab
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	20000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated [custom]	48 VDC

USB2.0 TYPE C RECPT SMT 16POS HO

Part	Current Rating (Amps)	Specifications	Mounting Type	Number of Contacts	Mating Cycles	Shell/Shielding Material	Gender	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Material Flammability Rating	Termination	Shielding	Connector Type	Features	Insulation Color	Mounting Feature	Voltage - Rated [custom]
GCT USB4800-03-A	5 A	USB 2.0	Surface Mount, Right Angle, Through Hole	24	20000	Stainless, Steel	Receptacle	1	-25 °C	85 °C	Gold	UL94 V-0	Solder	Shielded	USB-C (USB TYPE-C)	Board Guide, Solder Retention Tab	Black	Horizontal	48 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
