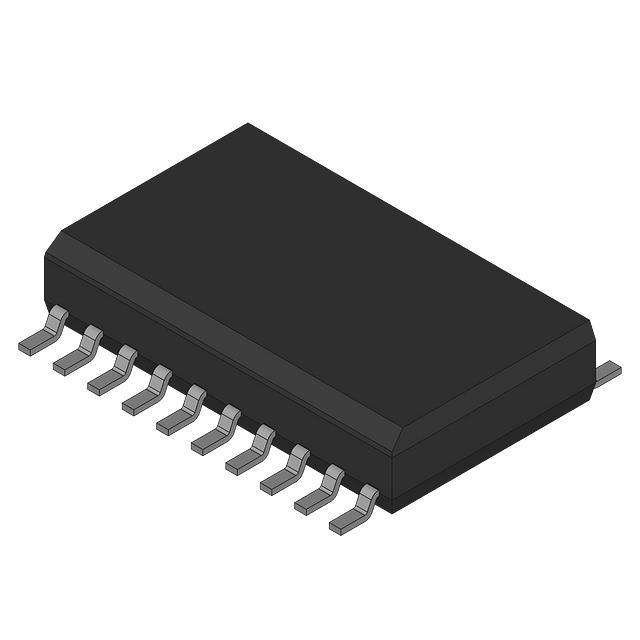

MC33186VW2R2

Active

Freescale Semiconductor

IC HALF BRIDGE DRIVER 5A 20HSOP

Search across all available documentation for this part.

Active

Freescale Semiconductor

IC HALF BRIDGE DRIVER 5A 20HSOP

Technical Specifications

Parameters and characteristics for this part

Specification	MC33186VW2R2

Applications	General Purpose, DC Motors, Solenoids
Current - Output / Channel [custom]	5 A
Fault Protection	Over Temperature, Short Circuit, UVLO, Current Limiting, Over Voltage
Features	Status Flag
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (2)
Package / Case	20-SOIC (0.433", 11.00mm Width) Exposed Pad
Package / Case [x]	11 mm
Rds On (Typ)	150 mOhm
Supplier Device Package	20-HSOP
Technology	Bi-CMOS
Voltage - Load [Max]	28 V
Voltage - Load [Min]	5 V
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

IC HALF BRIDGE DRIVER 5A 20HSOP

Part	Current - Output / Channel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Interface	Features	Mounting Type	Rds On (Typ)	Load Type	Output Configuration	Applications	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Package / Case	Package / Case [x]
Freescale Semiconductor MC33186VW2R2	5 A	150 °C	-40 °C	Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO	Logic	Status Flag	Surface Mount	150 mOhm	Inductive	Half Bridge (2)	DC Motors, General Purpose, Solenoids	Bi-CMOS	5 V	28 V	5 V	28 V	20-HSOP	20-SOIC (0.433", 11.00mm Width) Exposed Pad	11 mm
