Q-2604S000M.75M

Active

Amphenol Custom Cable

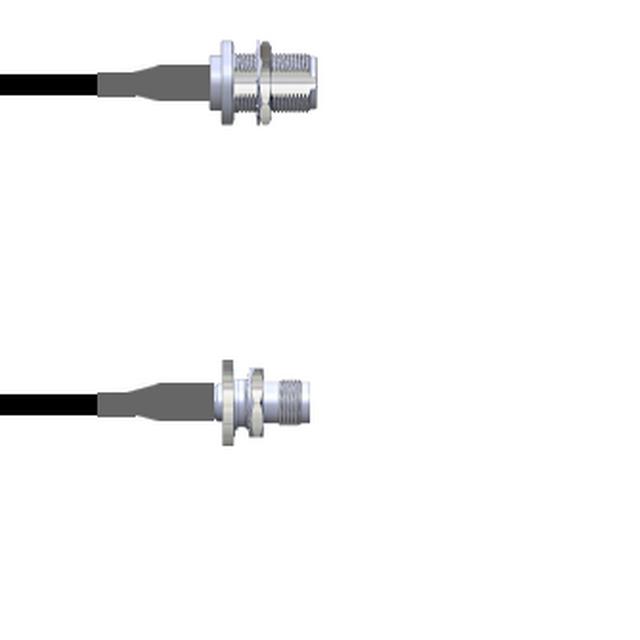

CBL ASSY NTYPE-TNC JK-JK 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2604S000M.75M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JK-JK 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2604S000M.75M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms

Q-2604S0 Series

Part	2nd Connector	2nd Connector Mounting Type	Cable Type	1st Connector Mounting Type	Frequency - Max [Max]	Length	Length	Length	Overall Impedance	1st Connector	2nd Contact Gender	2nd Connector Mounting Feature	Color	1st Connector Mounting Feature	1st Contact Gender	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-2604S000M2.5M	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz	8.2 '	98.4 in	2.5 m	50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded
Amphenol Custom Cable Q-2604S000M018i	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz				50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2604S000M002M	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz	6.6 ft	78.7 in	2 m	50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded
Amphenol Custom Cable Q-2604S000M1.5M	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz	4.9 ft	59.1 in	1.5 m	50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded
Amphenol Custom Cable Q-2604S000M048i	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz	4 ft	48 in	1200 mm	50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded
Amphenol Custom Cable Q-2604S000M072i	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz	6 ft	72 in	1.8 m	50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded
Amphenol Custom Cable Q-2604S000M036i	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz		36 in	91.44 cm	50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded
Amphenol Custom Cable Q-2604S000M.75M	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz		29.53 "	750 mm	50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded
Amphenol Custom Cable Q-2604S000M0.5M	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz		19.69 "	50 cm	50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded
Amphenol Custom Cable Q-2604S000M012i	TNC Jack	Panel Mount	LMR 240	Panel Mount	6000 MHz		12 "	304.8 mm	50 Ohms	N-Type Jack	Female	Bulkhead - Front Side Nut	Black	Bulkhead - Front Side Nut	Female	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 127.58
		25	$ 125.15
		50	$ 122.73
		100	$ 120.30
		250	$ 117.88

Description

General part information

Q-2604S0 Series

Cable Assembly Coaxial N-Type to TNC LMR 240 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
