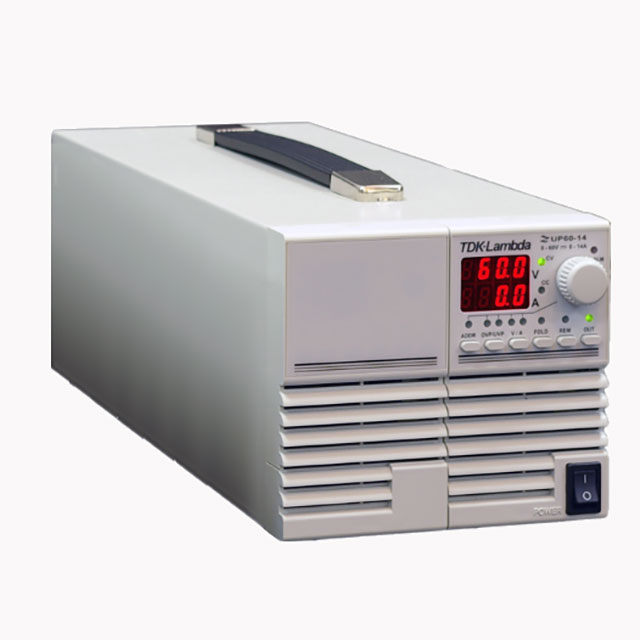

ZUP60-14/U

Obsolete

TDK-LAMBDA

PWR SUP BENCH PROG 0-60V 840W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZUP General Safety Inst +1

ZUP60-14/U

Obsolete

TDK-LAMBDA

PWR SUP BENCH PROG 0-60V 840W

Deep-Dive with AI

DocumentsZUP General Safety Inst +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ZUP60 Series

0 ~ 60VDC Output Bench (AC to DC) Power Supply Digital 0 ~ 14A Output 800W Features Memory, Programmable, RS232 and RS485 Interface

Documents

Technical documentation and resources

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZUP60-14/U	ZUP60 Series

Accuracy - Voltmeter; Ammeter	0.02% + 35mV	0.02% + 35mV
Current - Output [Max]	14 A	3.5 - 14 A
Current - Output [Min]	0 A	0 A
Current Regulation - Line	5 mA, 0.01 %	0.01 - 5 %
Current Regulation - Line	-	2 mA
Current Regulation - Load	10 mA, 0.07 %	0.01 - 10 %
Display Type	Digital	Digital
Features	Memory, RS232 and RS485 Interface, Programmable	Memory, RS232 and RS485 Interface, Programmable
Number of Characters	3	3
Number of Outputs	1	1
Power (Watts)	800 W	200 - 800 W
Ripple	5 mV	5 mV
Size / Dimension [x]	13.78 in	13.78 in
Size / Dimension [x]	350 mm	350 mm
Size / Dimension [y]	5.512 in	4.882 - 5.512 in
Size / Dimension [y]	140 mm	124 - 140 mm
Size / Dimension [z]	4.882 in	2.756 - 4.882 in
Size / Dimension [z]	124 mm	70 - 124 mm
Type	Bench (AC to DC)	Bench (AC to DC)
Voltage - Output [Max]	60 VDC	60 VDC
Voltage - Output [Min]	0 VDC	0 VDC
Voltage - Supply [Max]	265 VAC	265 VAC
Voltage - Supply [Min]	85 VAC	85 VAC
Voltage Regulation - Line	1 mV, 0.005 %	0.005 - 1 mV
Voltage Regulation - Load	2 mV	2 mV
Weight	13 lbs	6.4 - 13 lbs
Weight	5.9 kg	2.9 - 5.9 kg

ZUP60 Series

BENCH POWER SUPPLY, NORTH AMERICA LINE CORD, ADJUSTABLE, 1 OUTPUT, 0 V, 60 V, 0 A, 7 A

Part	Ripple	Number of Characters	Type	Current Regulation - Load	Weight	Weight	Display Type	Voltage Regulation - Line	Current - Output [Max]	Number of Outputs	Voltage - Output [Max]	Current Regulation - Line	Current Regulation - Line	Features	Accuracy - Voltmeter; Ammeter	Voltage Regulation - Load	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Supply [Max]	Voltage - Supply [Min]	Power (Watts)
TDK-LAMBDA ZUP60-7/U	5 mV	3	Bench (AC to DC)	0.01 %, 5 mA	7.1 lbs	3.2 kg	Digital	0.005 %, 1 mV	7 A	1	60 VDC	2 mA	0.01 %	Memory, Programmable, RS232 and RS485 Interface	0.02% + 35mV	2 mV	124 mm	13.78 in	70 mm	4.882 in	350 mm	2.756 in	265 VAC	85 VAC
TDK-LAMBDA ZUP60-14/LU	5 mV	3	Bench (AC to DC)	0.07 %, 10 mA	13 lbs	5.9 kg	Digital	0.005 %, 1 mV	14 A	1	60 VDC		0.01 %, 5 mA	Memory, Programmable, RS232 and RS485 Interface	0.02% + 35mV	2 mV	140 mm	13.78 in	124 mm	5.512 in	350 mm	4.882 in	265 VAC	85 VAC	800 W
TDK-LAMBDA ZUP60-14/U	5 mV	3	Bench (AC to DC)	0.07 %, 10 mA	13 lbs	5.9 kg	Digital	0.005 %, 1 mV	14 A	1	60 VDC		0.01 %, 5 mA	Memory, Programmable, RS232 and RS485 Interface	0.02% + 35mV	2 mV	140 mm	13.78 in	124 mm	5.512 in	350 mm	4.882 in	265 VAC	85 VAC	800 W
TDK-LAMBDA ZUP60-14/LUW	5 mV	3	Bench (AC to DC)	0.07 %, 10 mA	13 lbs	5.9 kg	Digital	0.005 %, 1 mV	14 A	1	60 VDC		0.01 %, 5 mA	Memory, Programmable, RS232 and RS485 Interface	0.02% + 35mV	2 mV	140 mm	13.78 in	124 mm	5.512 in	350 mm	4.882 in	265 VAC	85 VAC	800 W
TDK-LAMBDA ZUP60-3.5/U	5 mV	3	Bench (AC to DC)	0.01 %, 5 mA	6.4 lbs	2.9 kg	Digital	0.005 %, 1 mV	3.5 A	1	60 VDC	2 mA	0.01 %	Memory, Programmable, RS232 and RS485 Interface	0.02% + 35mV	2 mV	124 mm	13.78 in	70 mm	4.882 in	350 mm	2.756 in	265 VAC	85 VAC	200 W
TDK-LAMBDA ZUP60-3.5/LUW	5 mV	3	Bench (AC to DC)	0.01 %, 5 mA	6.4 lbs	2.9 kg	Digital	0.005 %, 1 mV	3.5 A	1	60 VDC	2 mA	0.01 %	Memory, Programmable, RS232 and RS485 Interface	0.02% + 35mV	2 mV	124 mm	13.78 in	70 mm	4.882 in	350 mm	2.756 in	265 VAC	85 VAC	200 W
TDK-LAMBDA ZUP60-14	5 mV	3	Bench (AC to DC)	0.07 %, 10 mA	13 lbs	5.9 kg	Digital	0.005 %, 1 mV	14 A	1	60 VDC		0.01 %, 5 mA	Memory, Programmable, RS232 and RS485 Interface	0.02% + 35mV	2 mV	140 mm	13.78 in	124 mm	5.512 in	350 mm	4.882 in	265 VAC	85 VAC	800 W
