86479-4

Active

TE Connectivity AMP Connectors

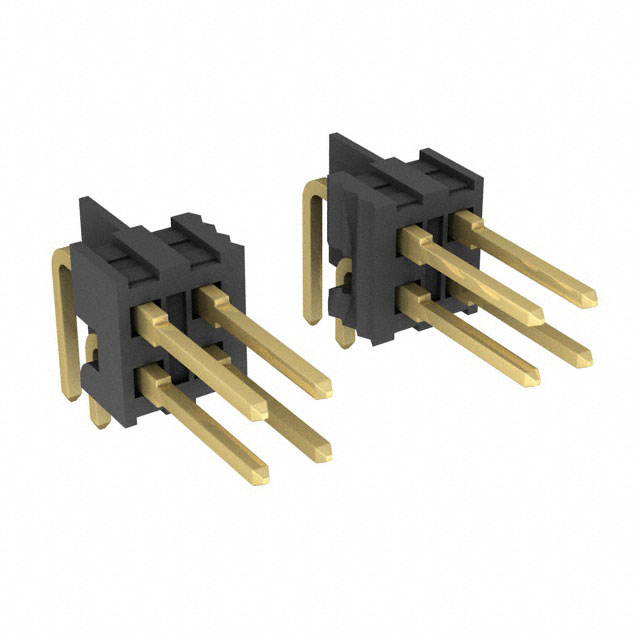

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

86479-4

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 12POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.64
		10	$ 6.33
		80	$ 5.34
		440	$ 4.65
		945	$ 4.37

Description

General part information

86479 Series

Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	86479-4	86479 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	6.05 mm	6.05 mm
Insulation Height	0.238 in	0.238 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	12	6 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

86479 Series

CONN HEADER R/A 6POS 2.54MM

Part	Contact Finish - Post	Insulation Color	Contact Material	Insulation Height	Insulation Height	Number of Positions Loaded	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Current Rating (Amps)	Termination	Connector Type	Insulation Material	Contact Finish Thickness - Post	Shrouding	Fastening Type	Material Flammability Rating	Contact Shape	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
TE Connectivity AMP Connectors 1-86479-5	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	6	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
TE Connectivity AMP Connectors 4-86479-4	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	80	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
TE Connectivity AMP Connectors 86479-4	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	12	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
