1-86479-5

Active

TE Connectivity AMP Connectors

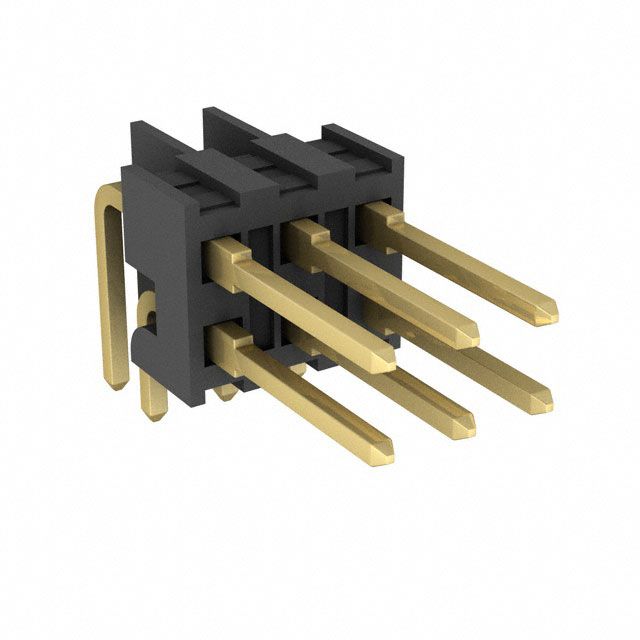

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.19
		10	$ 2.85
		100	$ 2.53
		500	$ 2.32
		1000	$ 2.08
		4900	$ 1.92

Description

General part information

86479 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-86479-5	86479 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	6.05 mm	6.05 mm
Insulation Height	0.238 in	0.238 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	6	6 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

86479 Series

CONN HEADER R/A 6POS 2.54MM

Part	Contact Finish - Post	Insulation Color	Contact Material	Insulation Height	Insulation Height	Number of Positions Loaded	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Current Rating (Amps)	Termination	Connector Type	Insulation Material	Contact Finish Thickness - Post	Shrouding	Fastening Type	Material Flammability Rating	Contact Shape	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
TE Connectivity AMP Connectors 1-86479-5	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	6	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
TE Connectivity AMP Connectors 4-86479-4	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	80	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
TE Connectivity AMP Connectors 86479-4	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	12	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
TE Connectivity AMP Connectors 3-86479-2	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	56	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
TE Connectivity AMP Connectors 1-86479-0	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	26	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
TE Connectivity AMP Connectors 86479-2	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm		30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C	16
TE Connectivity AMP Connectors 3-86479-6	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	64	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
TE Connectivity AMP Connectors 3-86479-7	Gold	Black	Phosphor Bronze	6.05 mm	0.238 in	All	Board to Board, Cable	2.54 mm	0.1 in	Male Pin	Gold	0.318 "	8.08 mm	0.1 in	2.54 mm	0.11 in	2.79 mm	66	30 Áin	0.76 Ám	Through Hole, Right Angle	3 A	Solder	Header	Thermoplastic	Flash	Unshrouded	Push-Pull	UL94 V-0	Square	2	-65 ░C	105 ░C
