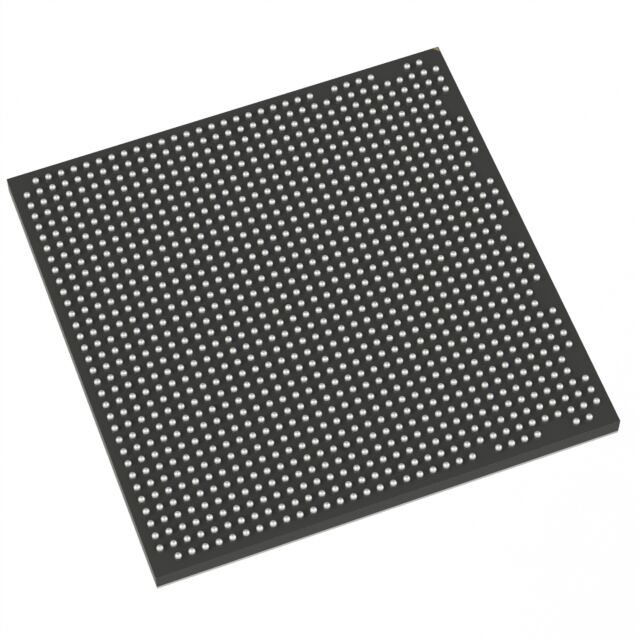

XC5VSX95T-3FFG1136C

Obsolete

AMD

IC FPGA 640 I/O 1136FCBGA

Search across all available documentation for this part.

Obsolete

AMD

IC FPGA 640 I/O 1136FCBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XC5VSX95T-3FFG1136C

Mounting Type	Surface Mount
Number of I/O	640
Number of LABs/CLBs	7360
Number of Logic Elements/Cells	94208
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	FCBGA, 1136-BBGA
Supplier Device Package	1136-FCBGA
Supplier Device Package [x]	35
Supplier Device Package [y]	35
Total RAM Bits	8994816 bits
Voltage - Supply [Max]	1.05 V
Voltage - Supply [Min]	0.95 V

Part	Total RAM Bits	Number of LABs/CLBs	Number of Logic Elements/Cells	Number of I/O	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Mounting Type
AMD XC5VSX95T-2FF1136C	8994816 bits	7360	94208	640	1.05 V	0.95 V	0 °C	85 °C	1136-BBGA FCBGA	35	35	1136-FCBGA	Surface Mount
AMD XC5VSX95T-1FF1136C	8994816 bits	7360	94208	640	1.05 V	0.95 V	0 °C	85 °C	1136-BBGA FCBGA	35	35	1136-FCBGA	Surface Mount
AMD XC5VSX95T-3FFG1136C	8994816 bits	7360	94208	640	1.05 V	0.95 V	0 °C	85 °C	1136-BBGA FCBGA	35	35	1136-FCBGA	Surface Mount
AMD XC5VSX95T-2FFG1136I	8994816 bits	7360	94208	640	1.05 V	0.95 V	-40 C	100 °C	1136-BBGA FCBGA	35	35	1136-FCBGA	Surface Mount
AMD XC5VSX95T-2FF1136I	8994816 bits	7360	94208	640	1.05 V	0.95 V	-40 C	100 °C	1136-BBGA FCBGA	35	35	1136-FCBGA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Virtex®-5 SXT Field Programmable Gate Array (FPGA) IC 640 8994816 94208 1136-BBGA, FCBGA

Technical documentation and resources
