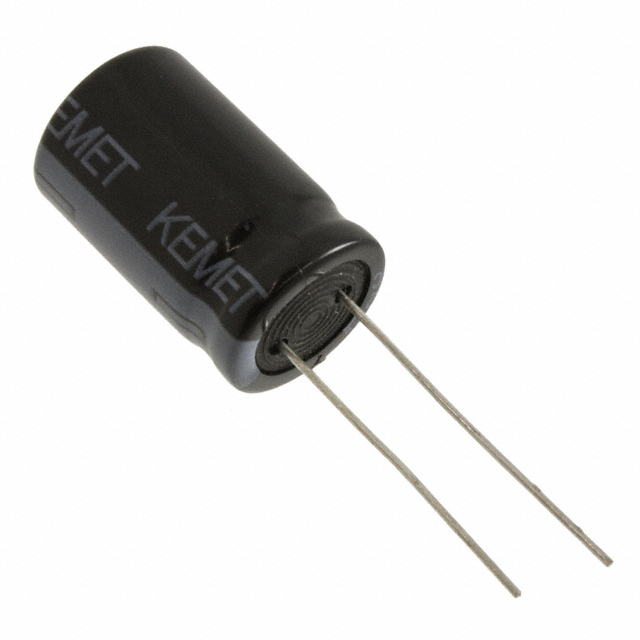

EST477M050AL3AA

Active

KEMET

CAP ALUM 470UF 20% 50V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 470UF 20% 50V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	EST477M050AL3AA

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	160 mOhm
Height - Seated (Max) [Max] [z]	22 mm
Height - Seated (Max) [Max] [z]	0.866 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.66 A
Ripple Current @ Low Frequency	830 mA
Size / Dimension [diameter]	0.512 in
Size / Dimension [diameter]	13 mm
Tolerance	20 %
Voltage - Rated	50 VDC

Part	Mounting Type	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Lead Spacing	Lead Spacing	Polarization	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Tolerance	Voltage - Rated	Lifetime @ Temp.	ESR (Equivalent Series Resistance)
KEMET EST477M050AL3AA	Through Hole	General Purpose	22 mm	0.866 in	470 µF	5 mm	0.197 in	Polar	Radial Can	0.512 in	13 mm	830 mA	-40 °C	105 ░C	1.66 A	20 %	50 VDC	10000 Hrs	160 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 160mOhm @ 100kHz 10000 Hrs @ 105°C
