3280-4SG-328

Active

Conxall/Switchcraft

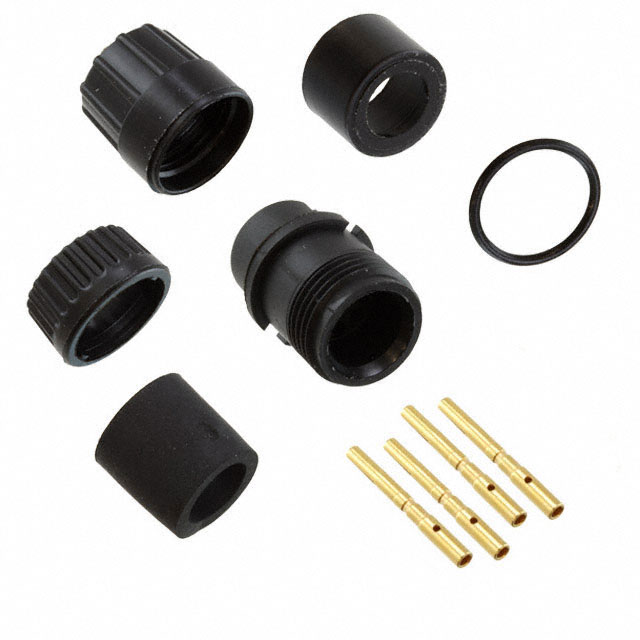

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3280-4SG-328

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.79

Description

General part information

3280-4S Series

4 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3280-4SG-328	3280-4S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	8.13 mm
Cable Opening [Max] [diameter]	7.37 mm	5.84 - 7.37 mm
Cable Opening [Max] [diameter]	0.29 in	0.23 - 0.32 in
Cable Opening [Min] [diameter]	7.11 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.28 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

3280-4S Series

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Voltage Rating	Primary Material	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Current Rating (Amps)	Fastening Type	Ingress Protection	Contact Finish - Mating	Termination	Contact Material	Color	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shielding	Features	Mounting Type	Number of Positions	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3280-4SG-324	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black	0.24 in	6.86 mm	6.1 mm	0.27 in	Unshielded	Backshell	Free Hanging (In-Line)	4	Female Sockets, Plug
Conxall/Switchcraft 3280-4SG-3DC	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black					Unshielded	Backshell	Free Hanging (In-Line)	4	Female Sockets, Plug
Conxall/Switchcraft 3280-4SG-328	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black	0.28 in	7.37 mm	7.11 mm	0.29 in	Unshielded	Backshell	Free Hanging (In-Line)	4	Female Sockets, Plug
Conxall/Switchcraft 3280-4SG-315	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black					Unshielded	Backshell	Free Hanging (In-Line)	4	Female Sockets, Plug	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3280-4SG-528	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black	0.28 in	7.37 mm	7.11 mm	0.29 in	Unshielded	Backshell, Cable Clamp	Free Hanging (In-Line)	4	Female Sockets, Plug
Conxall/Switchcraft 3280-4SG-330	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black	0.3 in		7.62 mm	0.32 in	Unshielded	Backshell	Free Hanging (In-Line)	4	Female Sockets, Plug			8.13 mm
Conxall/Switchcraft 3280-4SG-515	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black					Unshielded	Backshell, Cable Clamp	Free Hanging (In-Line)	4	Female Sockets, Plug	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3280-4SG-521	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black	0.21 in	5.84 mm	5.33 mm	0.23 in	Unshielded	Backshell, Cable Clamp	Free Hanging (In-Line)	4	Female Sockets, Plug
Conxall/Switchcraft 3280-4SG-524	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black	0.24 in	6.86 mm	6.1 mm	0.27 in	Unshielded	Backshell, Cable Clamp	Free Hanging (In-Line)	4	Female Sockets, Plug
Conxall/Switchcraft 3280-4SG-530	600 V	Plastic	Nylon, Polyamide (PA)	-40 °C	115 °C	Keyed	5.6 A	Bayonet Lock	Weathertight	Gold	Crimp	Brass	Black	0.3 in		7.62 mm	0.32 in	Unshielded	Backshell, Cable Clamp	Free Hanging (In-Line)	4	Female Sockets, Plug			8.13 mm
