Q-2M01K000R024i

Active

Amphenol Custom Cable

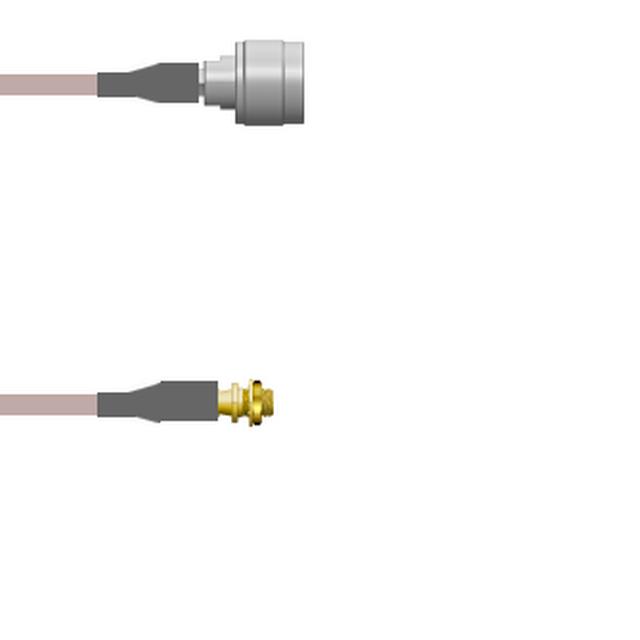

CBL ASSY MMCX-NTYPE JACK-PLG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2M01K000R024i

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE JACK-PLG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2M01K000R024i

1st Connector	MMCX Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2M01K0 Series

Part	1st Connector	Color	2nd Contact Gender	Features	1st Connector Mounting Feature	Length	Length	Length	1st Contact Gender	Cable Type	2nd Connector Mounting Type	Frequency - Max [Max]	Style	2nd Connector	1st Connector Mounting Type	Overall Impedance
Amphenol Custom Cable Q-2M01K000R2.5M	MMCX Jack	Copper	Male	Shielded	Bulkhead - Front Side Nut	8.2 '	98.4 in	2.5 m	Female	RG-316 DB	Free Hanging (In-Line)	6000 MHz	MMCX to N-Type	N-Type Plug	Panel Mount	50 Ohms
Amphenol Custom Cable Q-2M01K000R084i	MMCX Jack	Copper	Male	Shielded	Bulkhead - Front Side Nut	7 ft	84 in	2.1 m	Female	RG-316 DB	Free Hanging (In-Line)	6000 MHz	MMCX to N-Type	N-Type Plug	Panel Mount	50 Ohms
Amphenol Custom Cable Q-2M01K000R006i	MMCX Jack	Copper	Male	Shielded	Bulkhead - Front Side Nut		6 in	152.4 mm	Female	RG-316 DB	Free Hanging (In-Line)	6000 MHz	MMCX to N-Type	N-Type Plug	Panel Mount	50 Ohms
Amphenol Custom Cable Q-2M01K000R1.5M	MMCX Jack	Copper	Male	Shielded	Bulkhead - Front Side Nut	4.9 ft	59.1 in	1.5 m	Female	RG-316 DB	Free Hanging (In-Line)	6000 MHz	MMCX to N-Type	N-Type Plug	Panel Mount	50 Ohms
Amphenol Custom Cable Q-2M01K000R003i	MMCX Jack	Copper	Male	Shielded	Bulkhead - Front Side Nut		3 in	76.2 mm	Female	RG-316 DB	Free Hanging (In-Line)	6000 MHz	MMCX to N-Type	N-Type Plug	Panel Mount	50 Ohms
Amphenol Custom Cable Q-2M01K000R072i	MMCX Jack	Copper	Male	Shielded	Bulkhead - Front Side Nut	6 ft	72 in	1.8 m	Female	RG-316 DB	Free Hanging (In-Line)	6000 MHz	MMCX to N-Type	N-Type Plug	Panel Mount	50 Ohms
Amphenol Custom Cable Q-2M01K000R024i	MMCX Jack	Copper	Male	Shielded	Bulkhead - Front Side Nut		24 "	609.6 mm	Female	RG-316 DB	Free Hanging (In-Line)	6000 MHz	MMCX to N-Type	N-Type Plug	Panel Mount	50 Ohms
Amphenol Custom Cable Q-2M01K000R009i	MMCX Jack	Copper	Male	Shielded	Bulkhead - Front Side Nut		9 "	228.6 mm	Female	RG-316 DB	Free Hanging (In-Line)	6000 MHz	MMCX to N-Type	N-Type Plug	Panel Mount	50 Ohms
Amphenol Custom Cable Q-2M01K000R108i	MMCX Jack	Copper	Male	Shielded	Bulkhead - Front Side Nut	9 ft	108 in	2.7 m	Female	RG-316 DB	Free Hanging (In-Line)	6000 MHz	MMCX to N-Type	N-Type Plug	Panel Mount	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 201.80
		25	$ 197.86
		50	$ 193.93
		100	$ 189.99
		250	$ 186.06

Description

General part information

Q-2M01K0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 DB 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
