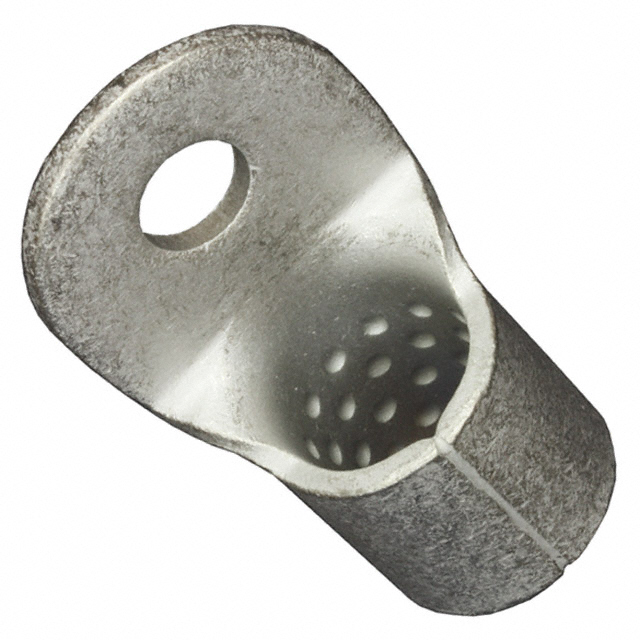

Specification	322253

Contact Finish	Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Non-Insulated
Length - Overall	2.602 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.4375 in
Stud/Tab Size	7 Stud, 16 Stud
Terminal Type	Circular
Termination	Crimp
Width - Outer Edges	1.435 in
Wire Gauge (MCM) (Max)	300 MCM
Wire Gauge (MCM) (Min)	250 MCM

3222 Series

Part	Width - Outer Edges	Stud/Tab Size	Stud/Tab Size	Wire Gauge (MCM)	Contact Finish	Features	Termination	Mounting Type	Terminal Type	Contact Material	Insulation	Length - Overall	Wire Gauge (MCM) (Max)	Wire Gauge (MCM) (Min)	Number of Wire Entries	Thickness	Shielding	Type	Wire Gauge	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
TE Connectivity AMP Connectors 322262	1.749 in	0.375 in	3 Stud 8 Stud	400 MCM	Tin	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	Copper	Non-Insulated	2.79 in
TE Connectivity AMP Connectors 322253	1.435 in	0.4375 in	16 Stud 7 Stud		Tin	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	Copper	Non-Insulated	2.602 in	300 MCM	250 MCM
TE Connectivity AMP Connectors 322276						Brazed Seam	Crimp		Individual Openings (Parallel) Inline		Non-Insulated		350 MCM	300 MCM	2
TE Connectivity AMP Connectors 322258	1.545 in	0.4375 in	16 Stud 7 Stud		Tin	Brazed Seam Serrated Termination	Crimp	Free Hanging (In-Line)	Circular	Copper	Non-Insulated	2.671 in	350 MCM	300 MCM		0.136 in
TE Connectivity AMP Connectors 3222-02-340012-CS2360																	Shielded	Backshell Heat Shrink Adapter
TE Connectivity AMP Connectors 322225	1.27 in	0.75 Stud	3 Stud 4 Stud		Tin	Brazed Seam Serrated Termination	Crimp	Free Hanging (In-Line)	Circular	Copper	Non-Insulated	2.671 in				0.08 in			2/0 AWG
TE Connectivity AMP Connectors 322279							Crimp		Butt Splice Individual Openings Inline		Non-Insulated		300 MCM	250 MCM	2
TE Connectivity AMP Connectors 322267	2.015 in	0.375 in	3 Stud 8 Stud		Tin	Brazed Seam	Crimp	Free Hanging (In-Line)	Circular	Copper	Non-Insulated	3.187 in	600 MCM	500 MCM
TE Connectivity AMP Connectors 322242	0.75 in	0.375 in	3 Stud 8 Stud		Tin	Brazed Seam Serrated Termination	Crimp	Free Hanging (In-Line)	Circular	Copper	Non-Insulated	1.271 in				0.039 in				12 AWG	10 AWG
TE Connectivity AMP Connectors 322273	2.015 in	1 Stud			Tin	Brazed Seam	Crimp	Free Hanging (In-Line)	Flat Sided	Copper	Non-Insulated	4.176 in	600 MCM	500 MCM
