MF-R075/90-0

Obsolete

Bourns Inc.

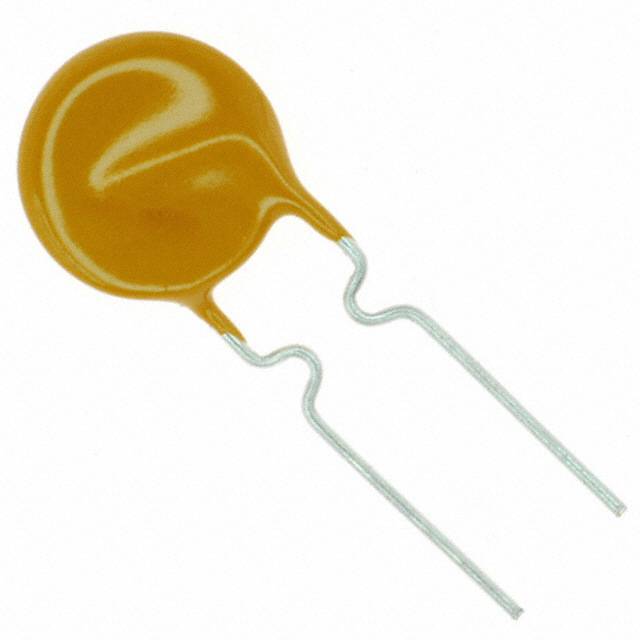

PTC RESET FUSE 90V 750MA RADIAL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 90V 750MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	MF-R075/90-0

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	750 mA
Current - Trip (It)	1.5 A
Height - Seated (Max) [Max]	0.63 in
Height - Seated (Max) [Max]	16 mm
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	370 mOhms
Resistance - Post Trip (R1) (Max) [Max]	1.65 Ohms
Size / Dimension [diameter]	10.4 mm
Size / Dimension [diameter]	0.409 in
Size / Dimension [z]	3.1 mm
Size / Dimension [z]	0.122 in
Time to Trip	60 s
Type	Polymeric
Voltage - Max [Max]	90 V

Part	Resistance - Post Trip (R1) (Max) [Max]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Mounting Type	Approval Agency	Voltage - Max [Max]	Time to Trip	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Current - Hold (Ih) (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Max [Max]	Current - Trip (It)	Type
Bourns Inc. MF-R075-2-99	600 mOhms	5.1 mm	0.201 in	0.63 in	16 mm	180 mOhms	Through Hole	cURus TUV	60 V	6.3 s	10.4 mm	0.409 in	3.1 mm	0.122 in	750 mA	Disc Radial	85 °C	-40 °C	40 A	1.5 A	Polymeric
Bourns Inc. MF-R075-0-99	600 mOhms	5.1 mm	0.201 in	0.63 in	16 mm	180 mOhms	Through Hole	cURus TUV	60 V	6.3 s	10.4 mm	0.409 in	3.1 mm	0.122 in	750 mA	Disc Radial	85 °C	-40 °C	40 A	1.5 A	Polymeric
Bourns Inc. MF-R075/90-0	1.65 Ohms	5.1 mm	0.201 in	0.63 in	16 mm	370 mOhms	Through Hole	cURus TUV	90 V	60 s	10.4 mm	0.409 in	3.1 mm	0.122 in	750 mA	Disc Radial	85 °C	-40 °C		1.5 A	Polymeric
Bourns Inc. MF-R075-2	600 mOhms	5.1 mm	0.201 in	0.63 in	16 mm	180 mOhms	Through Hole	cURus TUV	60 V	6.3 s	10.4 mm	0.409 in	3.1 mm	0.122 in	750 mA	Disc Radial	85 °C	-40 °C	40 A	1.5 A	Polymeric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Polymeric PTC Resettable Fuse 90V 750 mA Ih Through Hole Radial, Disc
