1-120534-1
ActiveTE Connectivity AMP Connectors

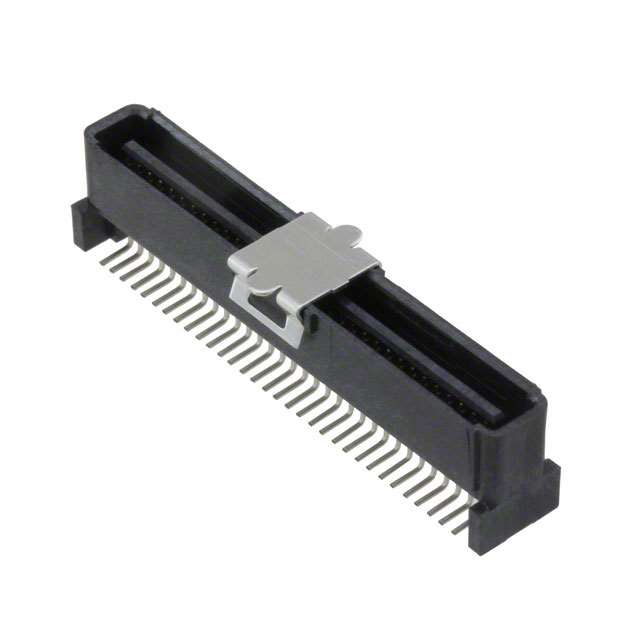

CONN PLUG 64POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-120534-1
ActiveTE Connectivity AMP Connectors
CONN PLUG 64POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-120534-1 | 120534 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 50 µin | 30 - 50 µin |
| Contact Finish Thickness | 1.27 µm | 0.76 - 1.27 µm |
| Height Above Board | 0.329 in | 0.329 in |
| Height Above Board | 8.35 mm | 8.35 mm |
| Mated Stacking Heights | 13 mm, 10 mm, 12 mm, 15 mm | 10 - 15 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 64 | 64 - 84 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.039 in | 0.039 in |
| Pitch [x] | 1 mm | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 3200 | $ 6.49 | |
120534 Series
CONN PLUG 84POS SMD GOLD
| Part | Mated Stacking Heights | Contact Finish | Number of Rows | Mounting Type | Height Above Board | Height Above Board | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-120534-2 | 10 mm, 12 mm, 13 mm, 15 mm | Gold | 2 | Surface Mount | 0.329 in | 8.35 mm | 0.039 in | 1 mm | 84 | 50 µin | 1.27 µm |
TE Connectivity AMP Connectors 120534-2 | 10 mm, 12 mm, 13 mm, 15 mm | Gold | 2 | Surface Mount | 0.329 in | 8.35 mm | 0.039 in | 1 mm | 84 | 30 Áin | 0.76 Ám |
TE Connectivity AMP Connectors 1-120534-1 | 10 mm, 12 mm, 13 mm, 15 mm | Gold | 2 | Surface Mount | 0.329 in | 8.35 mm | 0.039 in | 1 mm | 64 | 50 µin | 1.27 µm |
TE Connectivity AMP Connectors 120534-1 | 10 mm, 12 mm, 13 mm, 15 mm | Gold | 2 | Surface Mount | 0.329 in | 8.35 mm | 0.039 in | 1 mm | 64 | 30 Áin | 0.76 Ám |
Description
General part information
120534 Series
64 Position Connector Plug, Center Strip Contacts Surface Mount Gold
