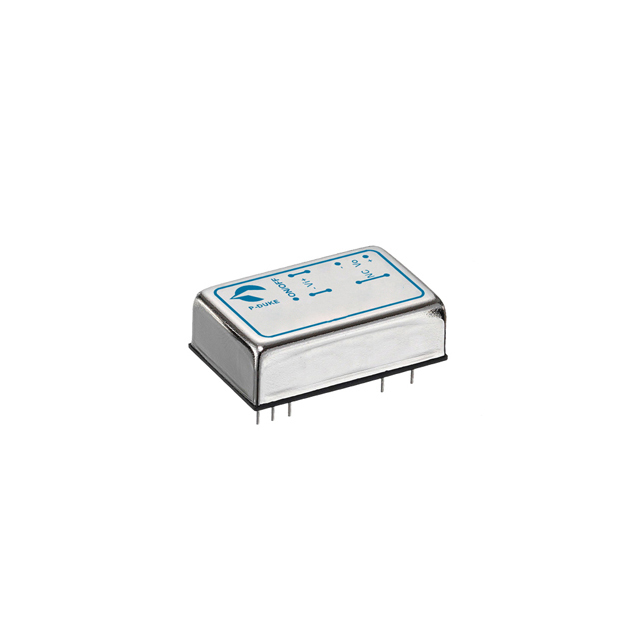

FKC08-48S12

Active

P-DUKE Technology

DC DC CONVERTER 12V 8W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 12V 8W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 12V 8W

Part	Applications	Approval Agency	Voltage - Input (Max) [Max]	Mounting Type	Efficiency	Package / Case	Package / Case	Voltage - Input (Min) [Min]	Features	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Power (Watts)	Number of Outputs	Voltage - Output 1	Type	Current - Output (Max) [Max]
P-DUKE Technology FKC08-48S12	ITE (Commercial)	CB, CE, cURus	75 V	Through Hole	86 %	9 PC Pad	24-DIP Module	36 V	Remote On/Off	Active High, Enable	-40 °C	100 °C	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	1.6 kV	8 W	1	12 V	Isolated Module	666 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 666mA 36V - 75V Input
