Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.64 | |
| 10 | $ 36.11 | |||
| 50 | $ 33.22 | |||
| 100 | $ 30.69 | |||
| 250 | $ 29.25 | |||
General part information

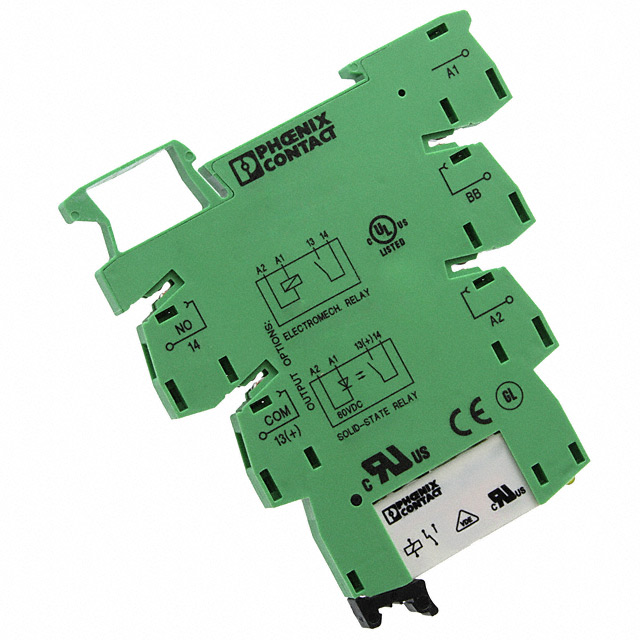

General Purpose Relay SPST-NO (1 Form A) DIN Rail
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2966320 | 29663 Series |
|---|---|---|
| Approval Agency | cULus, DNV, UL, EAC | cULus, DNV, UL, EAC |
| Coil Current | 3.5 mA | 3.2 - 9 mA |
| Coil Resistance | 34.29 kOhms | 2.67 - 71.88 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC | 24 - 230 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Gold (Au), Silver Tin Oxide (AgSnO) | Gold (Au), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 50 mA | 50 mA |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 6 ms | 5 - 7 ms |
| Operating Temperature [Max] | 55 °C | 55 - 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 8 - 15 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 36 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
RELAY GEN PURPOSE SPST 50MA 24V
| Part | Release Time | Features | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Approval Agency | Mounting Type | Relay Type | Coil Current | Coil Type | Contact Rating (Current) | Coil Resistance | Termination Style | Switching Voltage | Coil Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2966317 | 8 ms | Lighted Indicator, Socket Included | SPST-NO (1 Form A) | -25 °C | 60 °C | Gold (Au), Silver Tin Oxide (AgSnO) | cULus, DNV, EAC, UL | DIN Rail | General Purpose | 9 mA | Non Latching | 50 mA | 2.67 kOhms | Screw Terminal | 30 VAC, 36 VDC | 24 VDC | 5 ms |
Phoenix Contact 2966333 | 15 ms | Lighted Indicator, Socket Included | SPST-NO (1 Form A) | -25 °C | 55 °C | Gold (Au), Silver Tin Oxide (AgSnO) | cULus, DNV, EAC, UL | DIN Rail | General Purpose | 3.2 mA | Non Latching | 50 mA | 71.88 kOhms | Screw Terminal | 30 VAC, 36 VDC | 230 VAC | 7 ms |
Phoenix Contact 2966320 | 15 ms | Lighted Indicator, Socket Included | SPST-NO (1 Form A) | -25 °C | 55 °C | Gold (Au), Silver Tin Oxide (AgSnO) | cULus, DNV, EAC, UL | DIN Rail | General Purpose | 3.5 mA | Non Latching | 50 mA | 34.29 kOhms | Screw Terminal | 30 VAC, 36 VDC | 120 VAC, 120 VDC | 6 ms |
