WM073,GY

Active

Serpac

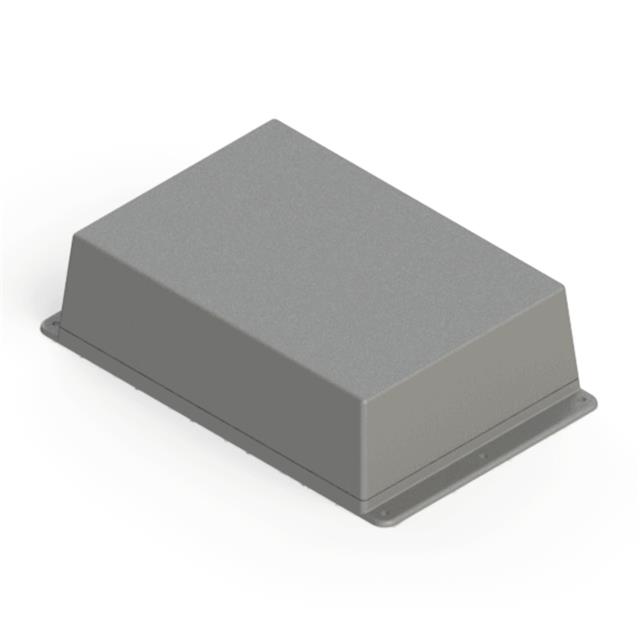

BOX ABS GRAY 6.88"L X 4.88"W

Deep-Dive with AI

Search across all available documentation for this part.

WM073,GY

Active

Serpac

BOX ABS GRAY 6.88"L X 4.88"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM073,GY

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	2.1 in
Height [z]	53.34 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.436 lb
Weight	197.77 g

WM073 Series

Part	Material	Height [z]	Height [z]	Ratings	Weight	Weight	Color	Material Flammability Rating	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Thickness	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Features	Area (L x W)	Area (L x W)
Serpac WM073I,BK	Plastic ABS	2.1 in	53.34 mm	IP40 NEMA 1	0.436 lb	197.77 g	Black	UL94 HB	217 cm˛	33.6 in˛	2.54 mm	0.1 in	Cover Included	123.95 mm	174.75 mm	4.88 in	6.88 in	Box	Mounting Flange PCB Supports Wall Mount
Serpac WM073RI,AL	Plastic ABS	2.1 in	53.34 mm	IP40 NEMA 1	0.436 lb	197.77 g	Almond	UL94 HB	217 cm˛	33.6 in˛	2.54 mm	0.1 in	Cover Included	123.95 mm	174.75 mm	4.88 in	6.88 in	Box	Front Access Mounting Flange PCB Supports Wall Mount
Serpac WM073RI,GY	Plastic ABS	2.1 in	53.34 mm	IP40 NEMA 1	0.436 lb	197.77 g	Gray	UL94 HB			2.54 mm	0.1 in	Cover Included	123.95 mm	174.75 mm	4.88 in	6.88 in	Box	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM073,GY	Plastic ABS	2.1 in	53.34 mm	IP40 NEMA 1	0.436 lb	197.77 g	Gray	UL94 HB			2.54 mm	0.1 in	Cover Included	123.95 mm	174.75 mm	4.88 in	6.88 in	Box	Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM073I,GY	Plastic ABS	2.1 in	53.34 mm	IP40 NEMA 1	0.436 lb	197.77 g	Gray	UL94 HB	217 cm˛	33.6 in˛	2.54 mm	0.1 in	Cover Included	123.95 mm	174.75 mm	4.88 in	6.88 in	Box	Mounting Flange PCB Supports Wall Mount
Serpac WM073RI,BK	Plastic ABS	2.1 in	53.34 mm	IP40 NEMA 1	0.436 lb	197.77 g	Black	UL94 HB			2.54 mm	0.1 in	Cover Included	123.95 mm	174.75 mm	4.88 in	6.88 in	Box	Front Access Mounting Flange PCB Supports Wall Mount	33.6 in²	217 cm²
Serpac WM073I,AL	Plastic ABS	2.1 in	53.34 mm	IP40 NEMA 1	0.436 lb	197.77 g	Almond	UL94 HB	217 cm˛	33.6 in˛	2.54 mm	0.1 in	Cover Included	123.95 mm	174.75 mm	4.88 in	6.88 in	Box	Mounting Flange PCB Supports Wall Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.40
		5	$ 10.77
		10	$ 10.31
		25	$ 9.99
		50	$ 9.85
		100	$ 9.77
		250	$ 9.71
		500	$ 9.69
		1000	$ 9.67

Description

General part information

WM073 Series

Box Plastic, ABS Gray Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.100" (53.34mm)

Documents

Technical documentation and resources

No documents available
