NORCOMP 780-M26-203L001

780-M44-103L001

Active
NorComp Inc.

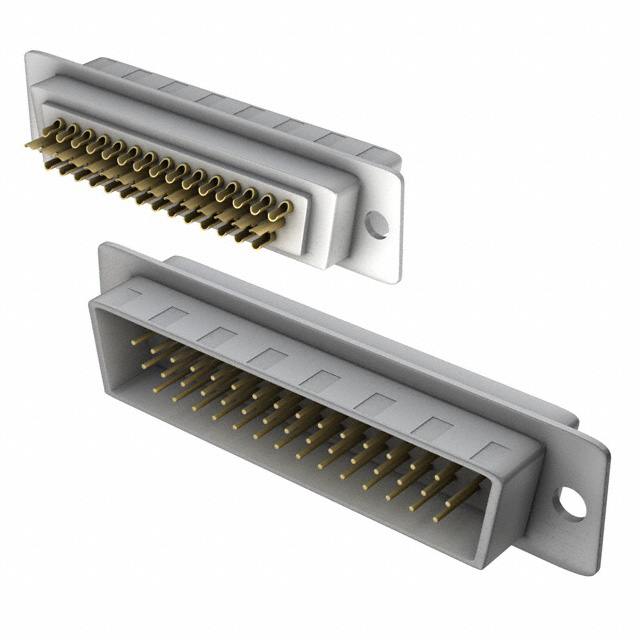

D SUB CONNECTOR, HD44, IP68, HIGH DENSITY, PLUG, SEAL-D 780-M SERIES, 44 CONTACTS, DB, SOLDER CUP

Find alt

Description

General part information

780-M44 Series

The Seal-D 780-M series solder-cup high-density D-sub Connectors with machined brass contacts with male and female pins, gold flash plating on entire contact and glass-filled PBT thermoplastic insulator, steel with nickel-plating shell. Unique sealing methods maintains STD D-sub profile allowing drop in replacement of current D-sub connectors.

Technical Specifications

Parameters and characteristics for this part

Specification780-M44-103L001
ColorBlack
Connector LayoutDB, B, High Density
Connector StyleHigh Density, D-Sub
Connector TypeMale Pins, Plug
Contact FinishGold
Contact Finish Thickness0
Contact Finish ThicknessFlash
Contact Finish Thickness (string set options)Flash
Contact FormMachined
Contact MaterialBrass
Contact TypeSignal
Current Rating3 A
Dielectric MaterialGlass Filled, Polybutylene Terephthalate (PBT)
FeaturesGrounding Indents
FinishNickel Plated
Flange FeatureShell (Unthreaded), Housing
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Material Flammability RatingUL94 V-0
Mounting TypePanel Mount
Number of Positions44
Number of Rows3
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Shell MaterialSteel
Shell Size3
TerminationSolder Cup
Wire Gauge (AWG) (Max)28 AWG
Wire Gauge (AWG) (Min)24 AWG
