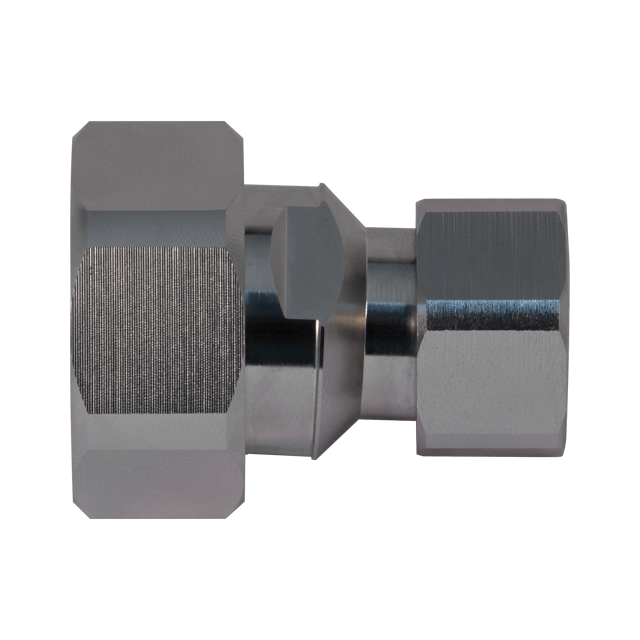

RFD-1686-4

Active

RF Industries

7/16 DIN MALE-4.3/10 MALE

Search across all available documentation for this part.

Active

RF Industries

7/16 DIN MALE-4.3/10 MALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFD-1686-4

Adapter Series	7/16 DIN, 4.3/10
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	4.3/10 Plug, Male Pin
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Style	Straight

7/16 DIN MALE-4.3/10 MALE

Part	Convert From (Adapter End)	Center Gender	Convert To (Adapter End)	Mounting Type	Body Finish	Center Contact Plating	Conversion Type	Adapter Series	Impedance	Style	Center Contact Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Adapter Type
RF Industries RFD-1686-4	4.3/10 Plug, Male Pin	Male to Male	7/16 Plug, Male Pin	Free Hanging (In-Line)	White Bronze	Silver	Between Series	4.3/10, 7/16 DIN	50 Ohms	Straight	Beryllium Copper	6000 MHz	-40 °C	155 °C	Polytetrafluoroethylene (PTFE)	Brass	Plug to Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.3/10 Plug, Male Pin To 7/16 Plug, Male Pin 50 Ohms
