17-200151
ActiveAmphenol CONEC

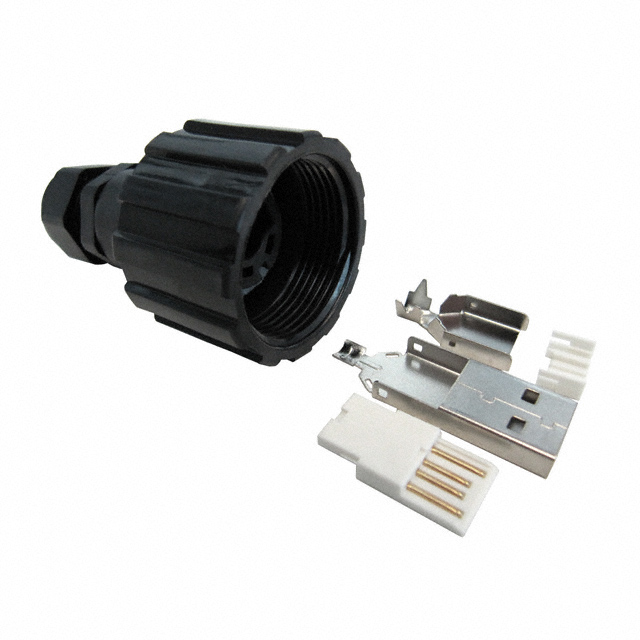

CONN PLUG USB2.0 TYPEA 4POS SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17-200151
ActiveAmphenol CONEC
CONN PLUG USB2.0 TYPEA 4POS SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17-200151 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Features | Circular Threaded Coupling |
| Gender | Plug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | White |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.63 | |
| 10 | $ 9.70 | |||
| 25 | $ 8.77 | |||
| 50 | $ 8.13 | |||
| 100 | $ 7.56 | |||
| 250 | $ 6.88 | |||
| 500 | $ 6.43 | |||
| 1000 | $ 6.02 | |||
Description
General part information
17-2001 Series
USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Free Hanging (In-Line)
