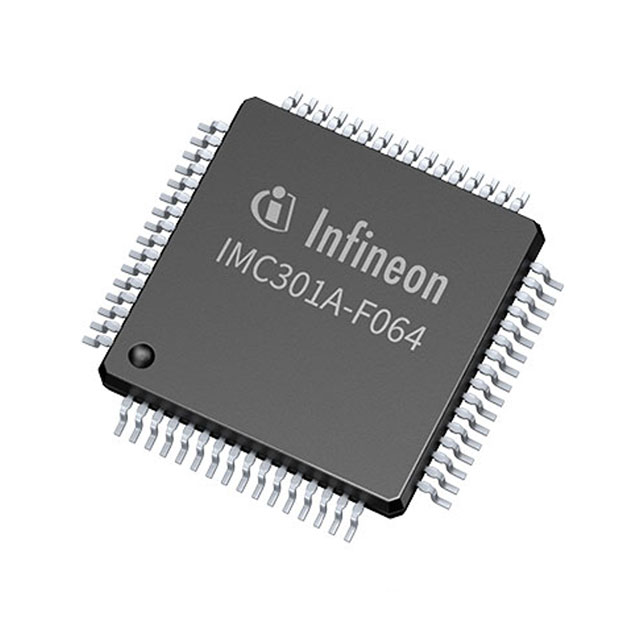

IMC302AF064XUMA1

Active

Infineon Technologies

IMOTION™ MOTOR & PFC CONTROLLER WITH MOTION CONTROL ENGINE (MCE 2.0), SCRIPTING AND ADDITIONAL 32-BIT MICROCONTROLLER IN QFP-64 PACKAGE.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IMC302AF064XUMA1

Active

Infineon Technologies

IMOTION™ MOTOR & PFC CONTROLLER WITH MOTION CONTROL ENGINE (MCE 2.0), SCRIPTING AND ADDITIONAL 32-BIT MICROCONTROLLER IN QFP-64 PACKAGE.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IMC302AF064XUMA1

Core Processor	ARM® Cortex®-M0
Mounting Type	Surface Mount
Number of I/O	41
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	64-LQFP
Program Memory Type	FLASH
RAM Size	16 K
Supplier Device Package	64-QFP (10x10)

IMC302 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Core Processor	Package / Case	Program Memory Type	Number of I/O	Mounting Type	Supplier Device Package
Infineon Technologies IMC302AF064XUMA1	105 °C	-40 °C	16 K	ARM® Cortex®-M0	64-LQFP	FLASH	41	Surface Mount	64-QFP (10x10)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.65
		10	$ 6.01
		25	$ 5.73
		100	$ 4.97
		250	$ 4.75
		500	$ 4.33
	Digi-Reel®	1	$ 6.65
		10	$ 6.01
		25	$ 5.73
		100	$ 4.97
		250	$ 4.75
		500	$ 4.33
	Tape & Reel (TR)	1900	$ 3.77
Newark	Each (Supplied on Cut Tape)	1	$ 6.82
		10	$ 5.25
		25	$ 4.86
		50	$ 4.64
		100	$ 4.42
		250	$ 4.21
		500	$ 4.09
		1000	$ 4.08

Description

General part information

IMC302 Series

iMOTION™ IMC300 motor & PFC controllerwith Motion Control Engine (MCE 2.0), scripting and Arm® Cortex®-M0 MCU in QFP-64 package. The IMC302A-F064 is a highly flexible control solution for variable speed drives including power factor correction (PFC) based on a dual core device.The motor and PFC controller performs sensor less field oriented control (FOC) for a variable speed drive based on a permanent magnet synchronous motor (PMSM) in parallel with a boost or totem pole PFC. The integrated MCU is based on an 32-bit Arm® Cortex®-M0 core and is used to implement customer functionality.
