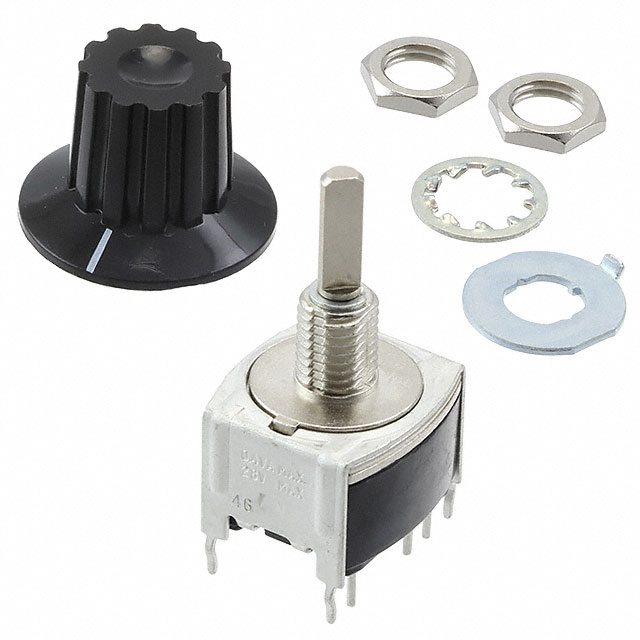

MRB12B-A

Active

NKK Switches

MINIATURE PCB PROCESS SEALED ROTARY

Search across all available documentation for this part.

Active

NKK Switches

MINIATURE PCB PROCESS SEALED ROTARY

Technical Specifications

Parameters and characteristics for this part

Specification	MRB12B-A

Actuator Length [x]	13 mm
Actuator Type	Knob
Angle of Throw	90 °
Circuit per Deck	SPDT
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Timing	Non-Shorting
Current Rating (Amps)	0.4 VA
Depth Behind Panel [z]	11 mm
Features	Sealed - Fully
Index Stops	Fixed
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	2
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Voltage Rating - AC	Number of Poles per Deck	Actuator Length [x]	Depth Behind Panel [z]	Contact Material	Voltage Rating - DC	Contact Finish	Features	Current Rating (Amps)	Contact Timing	Angle of Throw	Circuit per Deck	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Number of Positions	Number of Decks [custom]	Index Stops	Mounting Type
NKK Switches MRB12B-CB	28 V	1	15.8 mm	11 mm	Beryllium Copper	28 V	Gold	Sealed - Fully	0.4 VA	Non-Shorting	90 °	SPDT	0.25 in	Knob	PC Pin	2	1	Fixed	Panel Mount Through Hole
NKK Switches MRB12B-A	28 V	1	13 mm	11 mm	Beryllium Copper	28 V	Gold	Sealed - Fully	0.4 VA	Non-Shorting	90 °	SPDT	0.25 in	Knob	PC Pin	2	1	Fixed	Panel Mount Through Hole
NKK Switches MRB12B-CA	28 V	1	15.8 mm	11 mm	Beryllium Copper	28 V	Gold	Sealed - Fully	0.4 VA	Non-Shorting	90 °	SPDT	0.25 in	Knob	PC Pin	2	1	Fixed	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 Position SPDT 0.4VA (AC/DC) 28 VAC Panel Mount, Through Hole
