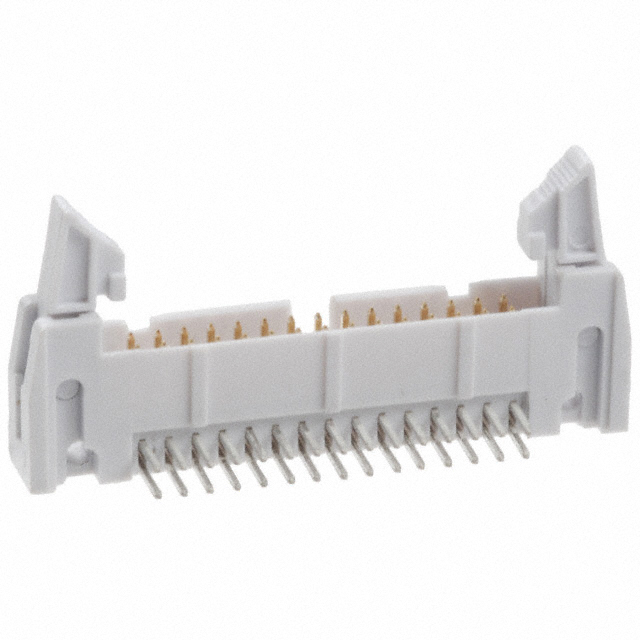

AWH30A-0222-T-R

Obsolete

Assmann WSW Components

CONN HEADER R/A 30POS 2.54MM

Search across all available documentation for this part.

Obsolete

Assmann WSW Components

CONN HEADER R/A 30POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	AWH30A-0222-T-R

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Color	Gray
Insulation Height [z]	17 mm
Insulation Height [z]	0.669 "
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Current Rating (Amps)	Fastening Type	Insulation Material	Features	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Contact Finish - Post	Material Flammability Rating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Connector Type	Contact Finish Thickness - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Number of Rows	Contact Type	Contact Shape	Style	Contact Material
Assmann WSW Components AWH30A-0222-T-R	3 A	Latch Lock/Eject Hooks Short	Polybutylene Terephthalate (PBT) Glass Filled	Keying Slot	0.1 in	2.54 mm	Gold	0.15 in	3.81 mm	Through Hole Right Angle	Tin	UL94 V-0	30	17 mm	0.669 "	Shrouded - 4 Wall	-40 °C	105 ░C	Gray	Header	Flash	Solder	2.54 mm	0.1 in	All	2	Male Pin	Square	Board to Cable/Wire	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
