Description
General part information
RRG3853 Series

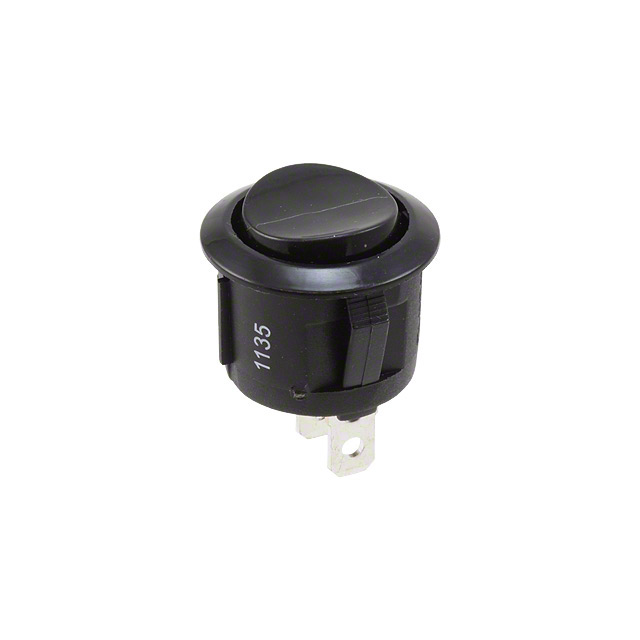

Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | RRG38531100 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round |
| Approval Agency | cUL, UL |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 10 A |
| Electrical Life (Cycles) | 6000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Diameter | 20 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | On-Off-On |
| Termination Style | Solder, Quick Connect |
| Voltage Rating - AC | 125 V |
