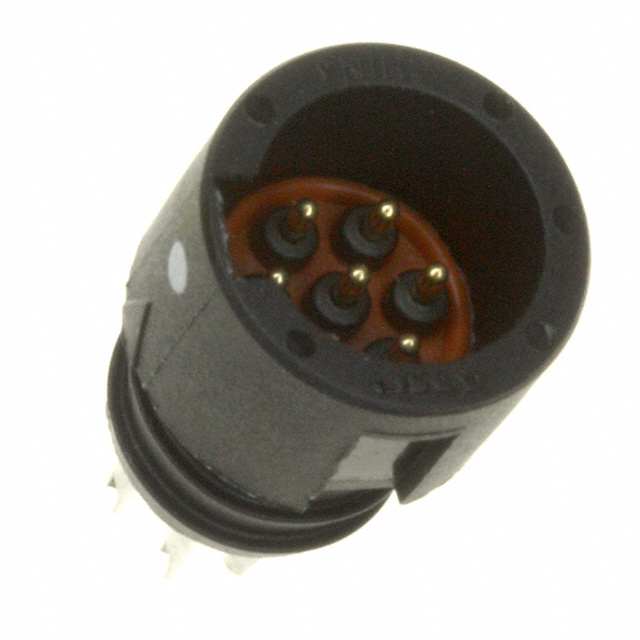

2-1445555-0

Obsolete

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	2-1445555-0

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	2 A
Fastening Type	Latch Lock
Features	Spring Probe
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature	105 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	M9.5
Voltage Rating	250 VDC

Part	Voltage Rating	Mounting Type	Current Rating (Amps)	Number of Positions	Connector Type	Orientation	Contact Finish - Mating	Fastening Type	Features	Shell Size - Insert	Ingress Protection	Primary Material	Operating Temperature
TE Connectivity Raychem Cable Protection 2-1445555-0	250 VDC	Free Hanging (In-Line)	2 A	7	Male Pins Receptacle	Keyed	Gold	Latch Lock	Spring Probe	M9.5	IP65 - Dust Tight Water Resistant	Plastic	105 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

No documents available
