27039.6

Active

Conta-Clip, Inc.

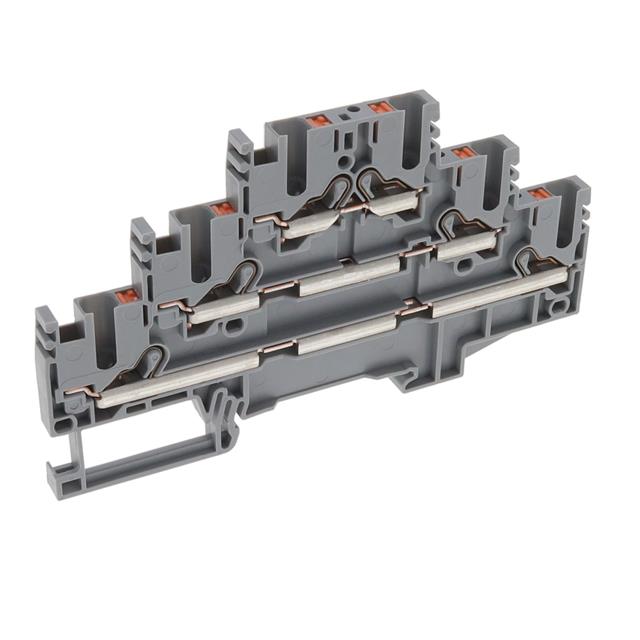

TRIPLEVEL TB PUSH-INGREY

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

TRIPLEVEL TB PUSH-INGREY

Technical Specifications

Parameters and characteristics for this part

Specification	27039.6

Color	Gray
Current - IEC	20 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Number of Levels [custom]	3
Number of Positions	6
Stripping Length	10 mm
Terminal - Width [y]	5.1 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	500 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²

TRIPLEVEL TB PUSH-INGREY

Part	Type	Material - Insulation	Terminal - Width [y]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Number of Positions	Material Flammability Rating	Stripping Length	Current - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels [custom]	Color	Termination Style
Conta-Clip, Inc. 27039.6	Feed Through	Polyamide (PA66), Nylon 6/6	5.1 mm	0.14 mm²	4 mm²	500 V	6	UL94 V-0	10 mm	20 A	12 AWG	26 AWG	3	Gray	Push In, Spring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 6 Position Feed Through Gray 12-26 AWG

Technical documentation and resources

No documents available
