2834737

Active

Phoenix Contact

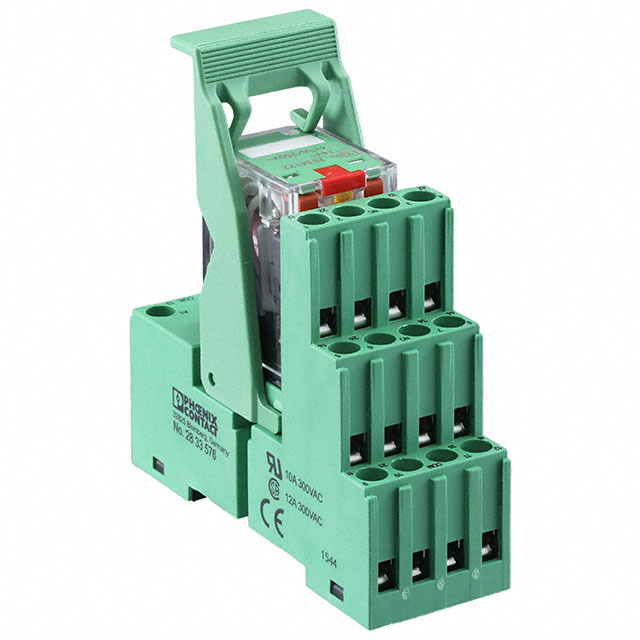

RELAY GEN PURPOSE 4PDT 5A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE 4PDT 5A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay 4PDT (4 Form C) 24VAC Coil DIN Rail

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2834737	28347 Series

Coil Current	46 mA	4 - 46 mA
Coil Resistance	-	13.33 - 632 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VAC	24 - 230 VAC
Contact Form	4PDT (4 Form C)	4PDT (4 Form C), DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au), Silver (Ag)
Contact Rating (Current)	5 A	5 - 10 A
Features	Lighted Indicator, Varistor, Socket Included	Lighted Indicator, Varistor, Socket Included, Diode
Load - Max Switching	-	625 - 2500 VA
Mounting Type	DIN Rail	DIN Rail
Operate Time	10 ms	10 - 13 ms
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	12 ms	5 - 12 ms
Switching Voltage	250 VAC, 250 VDC	125 - 250 VAC
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal

RELAY GEN PURPOSE 4PDT 5A 24V

Part	Relay Type	Contact Material	Mounting Type	Termination Style	Switching Voltage	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Features	Coil Type	Contact Rating (Current)	Operate Time	Coil Current	Coil Voltage	Contact Form	Coil Resistance	Load - Max Switching
Phoenix Contact 2834737	General Purpose	Gold (Au), Silver Nickel (AgNi)	DIN Rail	Screw Terminal	250 VAC, 250 VDC	12 ms	-25 °C	60 °C	Lighted Indicator, Socket Included, Varistor	Non Latching	5 A	10 ms	46 mA	24 VAC	4PDT (4 Form C)
Phoenix Contact 2834708	General Purpose	Silver (Ag)	DIN Rail	Spring Terminal	125 VDC, 250 VAC	12 ms	-25 °C	60 °C	Lighted Indicator, Socket Included, Varistor	Non Latching	10 A	10 ms	9 mA	120 VAC	DPDT (2 Form C)	13.33 kOhms	1250 W, 2500 VA
Phoenix Contact 2834782	General Purpose	Gold (Au), Silver Nickel (AgNi)	DIN Rail	Spring Terminal	250 VAC, 250 VDC	12 ms	-25 °C	60 °C	Lighted Indicator, Socket Included, Varistor	Non Latching	5 A	10 ms	9 mA	120 VAC	4PDT (4 Form C)	13.33 kOhms
Phoenix Contact 2834795	General Purpose	Gold (Au), Silver Nickel (AgNi)	DIN Rail	Spring Terminal	250 VAC, 250 VDC	12 ms	-25 °C	60 °C	Lighted Indicator, Socket Included, Varistor	Non Latching	5 A	10 ms	4 mA	230 VAC	4PDT (4 Form C)	57.5 kOhms
Phoenix Contact 2834766	General Purpose	Gold (Au), Silver Nickel (AgNi)	DIN Rail	Spring Terminal	125 VDC, 250 VAC	5 ms	-25 °C	60 °C	Diode, Lighted Indicator, Socket Included	Non Latching	5 A	13 ms	38 mA	24 VDC	4PDT (4 Form C)	632 Ohms	625 W, 1250 VA
