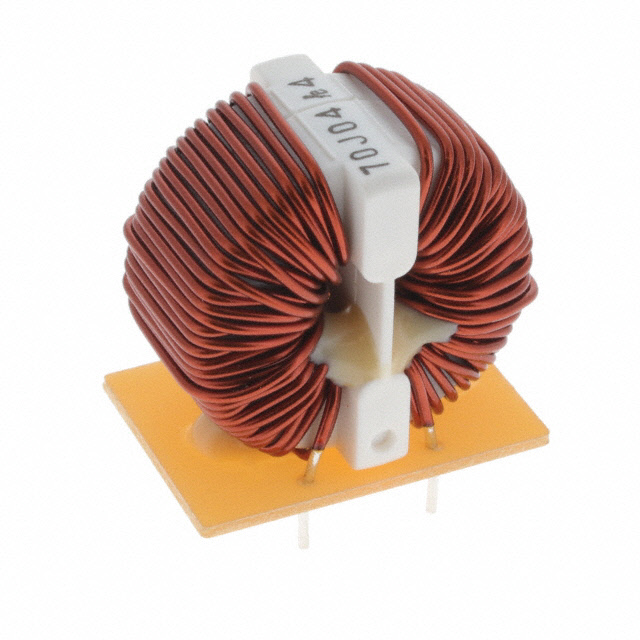

SC22-05-70J - SC22-05-70J

SC22-05-70J

Active
KEMET

COMMON MODE FILTER, 7MH, 5A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENDatasheet+2
SC22-05-70J - SC22-05-70J

SC22-05-70J

Active
KEMET

COMMON MODE FILTER, 7MH, 5A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSC22-05-70J
Current Rating (Max) [Max]5 A
DC Resistance (DCR) (Max) [Max]60 mOhm
Filter TypePower Line
Height (Max) [Max] [z]29 mm
Height (Max) [Max] [z]1.142 in
Inductance @ Frequency7 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-40 °C
Package / Case4 Lead
Package / CaseVertical
Size / Dimension [x]28 mm
Size / Dimension [x]1.102 in
Size / Dimension [y]18.5 mm
Size / Dimension [y]0.728 in
Voltage Rating - AC250 V
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 3.69
10$ 3.03
25$ 2.80
50$ 2.64
100$ 2.49
250$ 2.31
450$ 2.20
950$ 2.06
2400$ 2.00
NewarkEach 1$ 4.42
10$ 2.88
25$ 2.81
50$ 2.72
100$ 2.65
500$ 2.07

Description

General part information

SC22-05 Series

7 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 5A DCR 60mOhm
