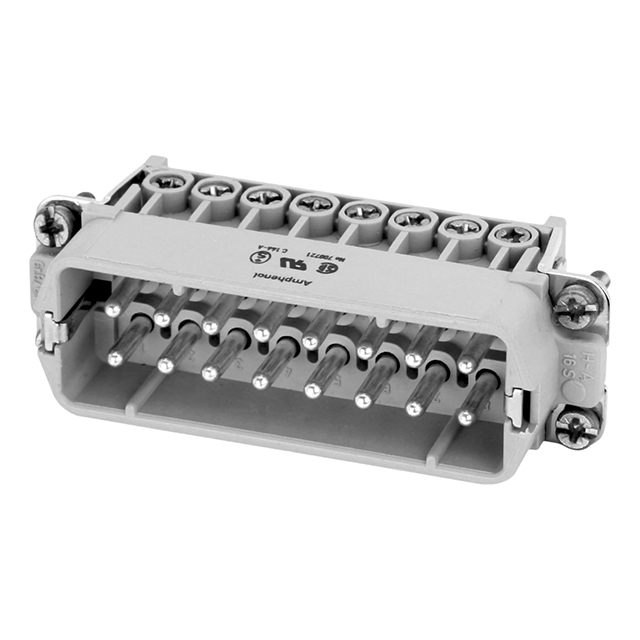

C14610A0160024

Active

Amphenol Tuchel Industrial

INSERT MALE 16POS+1GND SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 16POS+1GND SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A0160024

Contact Finish	Silver
Contact Material	Brass
Current Rating (Amps)	14 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions	16+Ground
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A16
Termination Style	Screw
Voltage Rating	250 VDC

Part	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Material	Number of Positions	Housing Material	Material Flammability Rating	Color	Size	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Voltage Rating	Contact Finish
Amphenol Tuchel Industrial C14610A0168101	Male	100 °C	-40 °C	Screw	Iron-Constantan (FE/KO)	16+Ground	Polyamide (PA) Nylon	UL94 V-0	Gray
Amphenol Tuchel Industrial C14610A0161023	Male	125 °C	-40 °C	Screw	Brass		Polyamide (PA) Nylon Glass Filled	UL94 V-0	Black	E24	10 A	16	2	Ground	600 V	Silver
Amphenol Tuchel Industrial C14610A0160023	Male	125 °C	-40 °C	Screw	Brass		Polyamide (PA) Nylon Glass Filled	UL94 V-0	Black	E24	10 A	16	2	Ground	600 V	Silver
Amphenol Tuchel Industrial C14610A0161021	Male	125 °C	-40 °C	Screw	Brass	16+Ground		UL94 V-0	Gray	E16	10 A				600 V	Silver
Amphenol Tuchel Industrial C14610A0161024	Male	100 °C	-40 °C	Screw	Brass	16+Ground	Polybutylene Terephthalate (PBT)	UL94 V-0		A16	14 A				250 VDC	Silver
Amphenol Tuchel Industrial C14610A0160024	Male	100 °C	-40 °C	Screw	Brass	16+Ground	Polybutylene Terephthalate (PBT)	UL94 V-0		A16	14 A				250 VDC	Silver
Amphenol Tuchel Industrial C14610A0160044	Male	100 °C	-40 °C	Screw	Brass	16+Ground	Polybutylene Terephthalate (PBT)	UL94 V-0		A10	14 A				250 VDC	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert 16+Ground Position Screw
