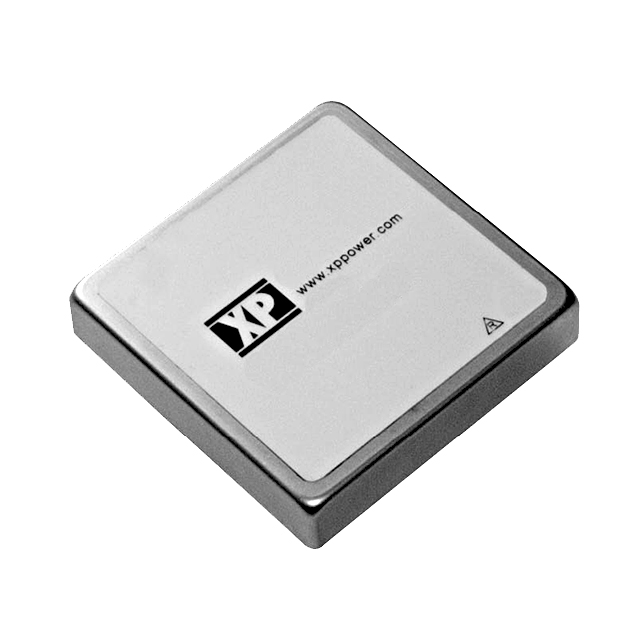

JCP4024T0312

Active

XP POWER

DC DC CONVERTER 3.3V +/-12V 29W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 3.3V +/-12V 29W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Applications	Voltage - Output 2	Power (Watts)	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Package / Case	Features	Voltage - Isolation	Efficiency	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Output 3	Mounting Type	Current - Output (Max) [Max]
XP POWER JCP4024T0312	Isolated Module	ITE (Commercial)	12 V	29 W	3	-40 °C	100 °C	3.3 V	9-DIP Module	OCP OVP Remote On/Off SCP	1.5 kV	90 %	36 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	18 V	-12 V	Through Hole
XP POWER JCP4024S3V3	Isolated Module	ITE (Commercial)		33 W	1	-40 °C	100 °C	3.3 V	9-DIP Module	OCP OVP Remote On/Off SCP	1.5 kV	89 %	36 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	18 V		Through Hole	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 119.68

General part information

Isolated Module DC DC Converter 3 Output 3.3V 12V -12V 6A, 400mA, 400mA 18V - 36V Input
