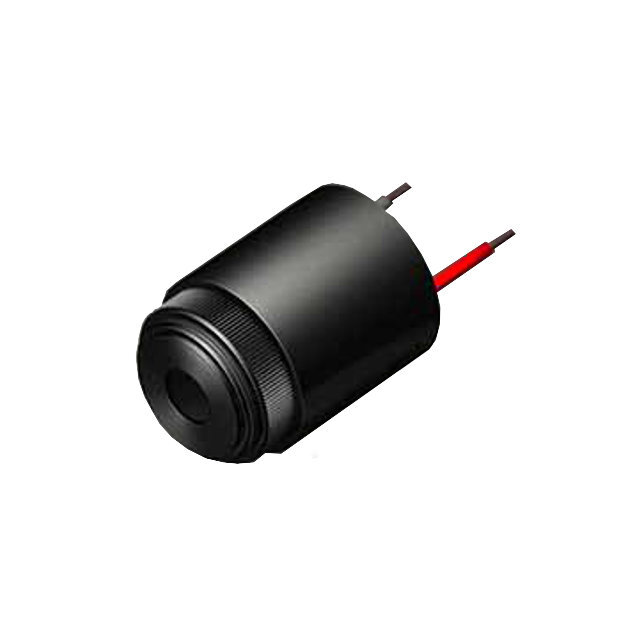

OC-19-201-WO

Active

Floyd Bell Inc

BUZZER PIEZO PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

OC-19-201-WO

Active

Floyd Bell Inc

BUZZER PIEZO PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OC-19-201-WO	OC-19-201 Series

Approval Agency	UR, UL	UR, UL
Current - Supply	-	20 mA
Current - Supply	-	60 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	-	2.9 kHz
Height - Seated (Max)	-	46.74 mm
Height - Seated (Max)	-	1.84 "
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	-	AC
Operating Mode	-	Single Tone, Pulse, Medium
Port Location	Top	Top
Size / Dimension	-	1.41 in
Size / Dimension	-	35.81 mm
Sound Pressure Level (SPL)	-	97 dB
Technology	Piezo	Piezo
Termination	Wire Leads	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range	-	120 V
Voltage Range	-	40 V

OC-19-201 Series

BUZZER PIEZO 35.81MM PNL MNT

Part	Ingress Protection	Sound Pressure Level (SPL)	Approval Agency	Operating Mode	Size / Dimension [diameter]	Size / Dimension [diameter]	Driver Circuitry	Technology	Port Location	Frequency	Current - Supply [Min]	Current - Supply [Max]	Input Type	Voltage Range [Max]	Voltage Range [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination
Floyd Bell Inc OC-19-201-SM	IP68 - Dust Tight, Waterproof	97 dB	UL, UR	Single Tone	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Top	2.9 kHz	20 mA	60 mA	AC	120 V	40 V	46.74 mm	1.84 "	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Floyd Bell Inc OC-19-201-SOA	IP68 - Dust Tight, Waterproof	97 dB	UL, UR	Medium, Pulse, Single Tone	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Top	2.9 kHz	20 mA	60 mA	AC	120 V	40 V	46.74 mm	1.84 "	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Floyd Bell Inc OC-19-201-WM	IP68 - Dust Tight, Waterproof		UL, UR				Indicator, Internally Driven	Piezo	Top									Wire Leads
Floyd Bell Inc OC-19-201-SO	IP68 - Dust Tight, Waterproof	97 dB	UL, UR	Single Tone	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Top	2.9 kHz	20 mA	60 mA	AC	120 V	40 V	46.74 mm	1.84 "	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Floyd Bell Inc OC-19-201-QM	IP68 - Dust Tight, Waterproof	97 dB	UL, UR	Single Tone	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Top	2.9 kHz	20 mA	60 mA	AC	120 V	40 V	46.74 mm	1.84 "	Quick Connect Tab - 0.250" (6.35mm)
Floyd Bell Inc OC-19-201-QOA	IP68 - Dust Tight, Waterproof	97 dB	UL, UR	Medium, Pulse, Single Tone	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Top	2.9 kHz	20 mA	60 mA	AC	120 V	40 V	46.74 mm	1.84 "	Quick Connect Tab - 0.250" (6.35mm)
Floyd Bell Inc OC-19-201-QL	IP68 - Dust Tight, Waterproof	97 dB	UL, UR	Single Tone	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Top	2.9 kHz	20 mA	60 mA	AC	120 V	40 V	46.74 mm	1.84 "	Quick Connect Tab - 0.250" (6.35mm)
Floyd Bell Inc OC-19-201-QO	IP68 - Dust Tight, Waterproof	97 dB	UL, UR	Single Tone	1.41 in	35.81 mm	Indicator, Internally Driven	Piezo	Top	2.9 kHz	20 mA	60 mA	AC	120 V	40 V	46.74 mm	1.84 "	Quick Connect Tab - 0.250" (6.35mm)
Floyd Bell Inc OC-19-201-WOA	IP68 - Dust Tight, Waterproof		UL, UR				Indicator, Internally Driven	Piezo	Top									Wire Leads
Floyd Bell Inc OC-19-201-WO	IP68 - Dust Tight, Waterproof		UL, UR				Indicator, Internally Driven	Piezo	Top									Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.98

Description

General part information

OC-19-201 Series

Buzzers Indicator, Internally Driven Piezo Panel Mount Wire Leads

Documents

Technical documentation and resources

No documents available
