031-2318-RFX

Active

AMPHENOL RF

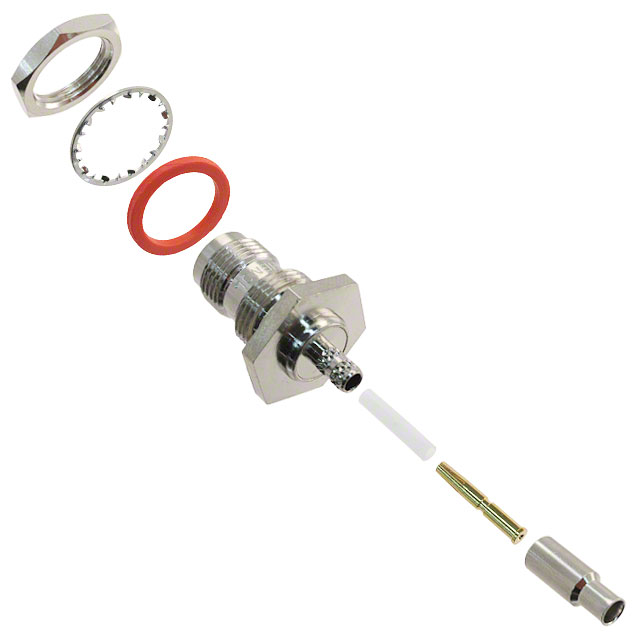

CONN TNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-2318-RFX

Active

AMPHENOL RF

CONN TNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.37
		10	$ 5.76
		25	$ 5.44
		50	$ 5.31
		100	$ 5.05
		300	$ 4.51
		500	$ 4.25
		1000	$ 3.72
		2500	$ 3.53

Description

General part information

031-23 Series

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-2318-RFX	031-23 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	188, 188A, 316, LMR-100, M17/119-RG174, RG-174, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, RG-55, 142A, 62, RG-59
Cable Group	-	142 - 400
Center Contact Material	Phosphor Bronze	Brass, Phosphor Bronze, Zinc Die Cast, Beryllium Copper
Center Contact Plating	Gold	Gold, Silver
Connector Style	TNC	TNC, BNC
Connector Type	Female Socket, Jack	Male Pin, Plug, Female Socket, Jack, Receptacle
Contact Termination	Crimp	Crimp, Solder, Solder Cup
Dielectric Material	Polyoxymethylene (POM) Acetal	Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Features	-	Extended Insulation
Frequency - Max	-	4 - 11 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Contact, 1 Nut, 1 Connector, 1 Gasket, 1 Ferrule, 1 Lockwasher, 1 Sleeve	1 Connector, 1 Sleeve, 1 Ferrule, 1 Contact, 1 Lockwasher, 1 Nut, 1 Gasket
Insertion Loss	-	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut, Flange, Bulkhead - Rear Side Nut
Mounting Type	-	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Crimp	Crimp, Solder
Voltage Rating	500 V	500 V

031-23 Series

CONN TNC 0HZ TO 3GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD

Part	Center Contact Plating	Contact Termination	Mounting Type	Housing Color	Voltage Rating	Body Finish	Mating Cycles	Impedance	Includes	Number of Ports	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Cable Group	Body Material	Connector Style	Center Contact Material	Connector Type	Frequency - Max [Max]	Mounting Feature	Cable Group	Features	Insertion Loss	Fastening Type
AMPHENOL RF 031-2315-RFX	Gold	Crimp	Free Hanging (In-Line)	Silver	500 V	Nickel	500	50 Ohms	1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve	1	Crimp	-65 ░C	165 °C	Polyoxymethylene (POM) Acetal	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Brass	TNC	Brass	Male Pin, Plug
AMPHENOL RF 031-2389	Gold	Crimp		Silver	500 V	Nickel	500	50 Ohms	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut	1	Crimp	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Brass	TNC	Phosphor Bronze	Female Socket, Jack	11 GHz	Bulkhead - Front Side Nut
AMPHENOL RF 031-2389-RFX	Gold	Crimp		Silver	500 V	Nickel	500	50 Ohms	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut	1	Crimp	-65 ░C	165 °C	Polyoxymethylene (POM) Acetal	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Brass	TNC	Phosphor Bronze	Female Socket, Jack	11 GHz	Bulkhead - Front Side Nut
AMPHENOL RF 031-2367	Gold	Crimp, Solder	Free Hanging (In-Line)	Silver	500 V	Nickel	500	50 Ohms	1 Connector, 1 Contact, 1 Ferrule	1	Crimp	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Brass	TNC	Brass	Male Pin, Plug	11 GHz
AMPHENOL RF 031-2367-RFX	Gold	Crimp	Free Hanging (In-Line)	Silver	500 V	Nickel	500	50 Ohms	1 Connector, 1 Contact, 1 Ferrule	1	Crimp	-40 °C	85 °C	Polyoxymethylene (POM) Acetal	142A, RG-55	Brass	TNC	Brass	Male Pin, Plug	11 GHz		400
AMPHENOL RF 031-2368-RFX	Gold	Crimp	Free Hanging (In-Line)	Silver	500 V	Nickel	500	50 Ohms		1	Crimp	-65 ░C	165 °C	Polyoxymethylene (POM) Acetal	62, RG-59	Brass	TNC	Brass	Male Pin, Plug	11 GHz
AMPHENOL RF 031-2300-RFX	Silver	Solder Cup		Silver	500 V		500	50 Ohms		1	Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)		Brass	TNC	Phosphor Bronze	Female Socket, Receptacle	11 GHz	Flange		Extended Insulation
AMPHENOL RF 031-2318-RFX	Gold	Crimp		Silver	500 V	Nickel	500	50 Ohms	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve	1	Crimp	-65 ░C	165 °C	Polyoxymethylene (POM) Acetal	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Brass	TNC	Phosphor Bronze	Female Socket, Jack		Bulkhead - Front Side Nut
AMPHENOL RF 031-2381-1	Gold	Crimp	Free Hanging (In-Line), Right Angle	Silver	500 V	Nickel	500	50 Ohms		1	Crimp	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	RG-55	Brass	TNC	Phosphor Bronze, Zinc Die Cast	Male Pin, Plug	11 GHz		142, 223, 400
AMPHENOL RF 031-239	Silver	Solder Cup		Silver	500 V	Nickel	500	50 Ohms	1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut	1	Solder	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)		Brass	BNC	Beryllium Copper, Brass	Female Socket, Jack	4 GHz	Bulkhead - Rear Side Nut		Extended Insulation	0.2 dB	Bayonet Lock
