1952-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

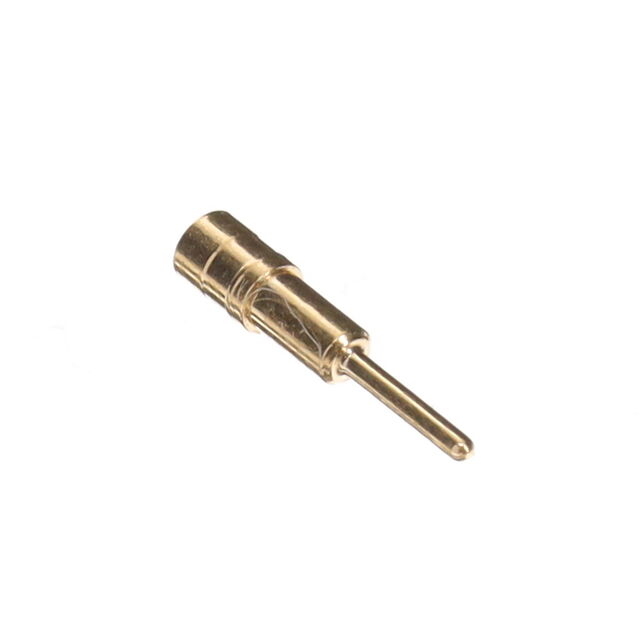

TARGET CONTACT FOR SPRING PINS
1952-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
TARGET CONTACT FOR SPRING PINS
Description
General part information
1952-0 Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 1952-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Brass Alloy |
| Flange Diameter | 0.057 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.251 in |
| Length - Overall | 0.282 in |
| Mounting Hole Diameter | 0.056 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.02 in |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
