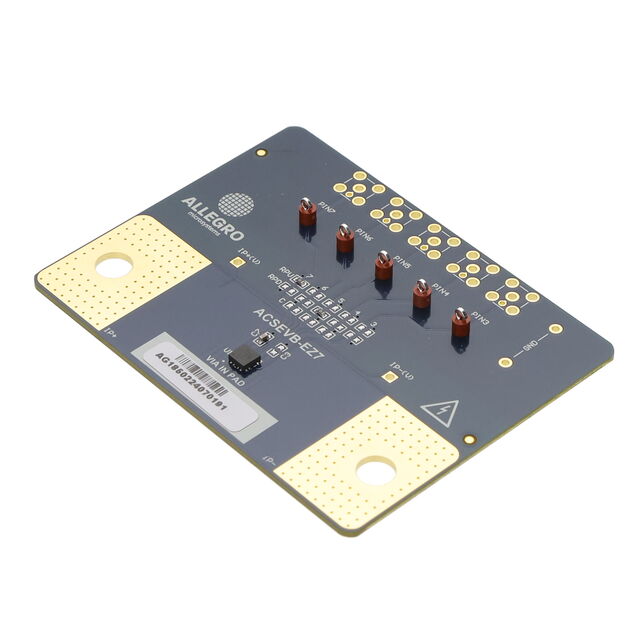

ACSEVB-EZ7-37220-200B5

Active

Allegro MicroSystems

EVAL BOARD FOR ACS37220 200B5

Search across all available documentation for this part.

Active

Allegro MicroSystems

EVAL BOARD FOR ACS37220 200B5

Technical Specifications

Parameters and characteristics for this part

Part	Sensor Type	Supplied Contents	Sensitivity	Sensing Range	Interface	Utilized IC / Part	Sensing Range [Min]	Sensing Range [Max]	Voltage - Supply	Contents
Allegro MicroSystems ACSEVB-EZ7-37220-100B5	Current Sensor	Board(s)	20 mV/mT	100 A	Analog	ACS37220
Allegro MicroSystems ACSEVB-EZ7-37220-150B5	Current Sensor	Board(s)	13.3 mV/A		Analog	ACS37220	-150 A	150 A
Allegro MicroSystems ACSEVB-EZ7-37220-200B5	Current Sensor	Board(s)	10 mV/A	200 A	Analog	ACS37220
Allegro MicroSystems ACSEVB-EZ7-37220-150B3	Current Sensor	Board(s)	8.8 mV/A		Analog	ACS37220	-150 A	150 A	3.3 V	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ACS37220 - Current Sensor Sensor Evaluation Board

Technical documentation and resources

No documents available
