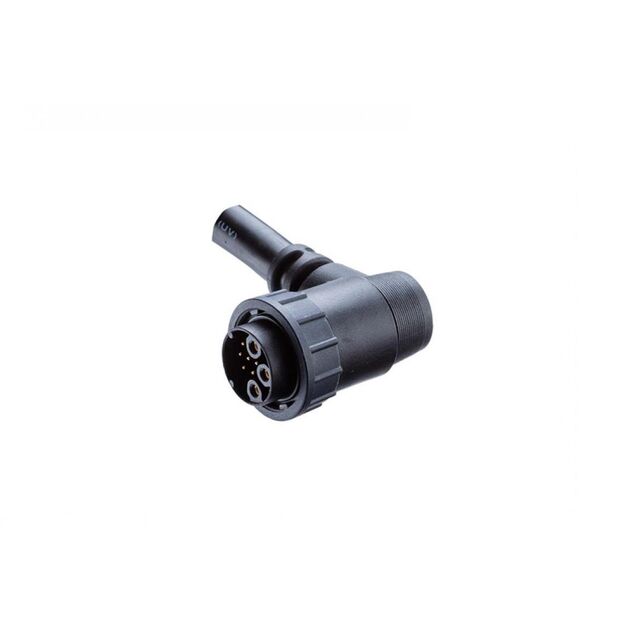

DCD-12AFDM-LR7A10

Active

Amphenol LTW

CBL 12POS PLUG RA TO WIRE 32.8'

Search across all available documentation for this part.

Active

Amphenol LTW

CBL 12POS PLUG RA TO WIRE 32.8'

Technical Specifications

Parameters and characteristics for this part

Specification	DCD-12AFDM-LR7A10

1st Connector Gender	Male Pins, Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	12
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	D
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Shielding	Shielded
Usage	Industrial Environments

Part	Assembly Configuration	1st Connector Mounting Type	1st Connector Orientation [custom]	1st Connector Gender	1st Connector Type	1st Connector Number of Positions	Shielding	Ingress Protection	Usage	1st Connector Number of Positions Loaded	Cable Material	2nd Connector Type	Length [x]	Length [x]	Color	Cable Type	1st Connector Shell Size - Insert
Amphenol LTW DCD-12AFDM-LL7A01	Standard	Free Hanging (In-Line)	Keyed	Female Sockets Male Pins	Plug	12	Shielded	IP67 - Dust Tight Waterproof	Industrial Environments	All	Polyvinyl Chloride (PVC)	Wire Leads	1 m	3.28 ft	Black	Round	D
Amphenol LTW DCD-12AFDM-LR7A10	Standard	Free Hanging (In-Line)	Keyed	Female Sockets Male Pins	Plug Right Angle	12	Shielded	IP67 - Dust Tight Waterproof	Industrial Environments	All	Polyvinyl Chloride (PVC)	Wire Leads			Black	Round	D
Amphenol LTW DCD-12AFDM-LL7A05	Standard	Free Hanging (In-Line)	Keyed	Female Sockets Male Pins	Plug	12	Shielded	IP67 - Dust Tight Waterproof	Industrial Environments	All	Polyvinyl Chloride (PVC)	Wire Leads	500 mm	1.64 ft	Black	Round	D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 94.22

General part information

Circular Cable Assembly Shielded 32.8' (10.00m)

Technical documentation and resources

No documents available
