EN3L8MX

Active

Switchcraft Inc.

CONN RCPT MALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3L8MX	EN3L8M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	6.5 A	6.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

CONN RCPT MALE 8POS GOLD CRIMP

Part	Number of Positions	Features	Mounting Type	Material Flammability Rating	Termination	Contact Material	Contact Finish - Mating	Orientation	Backshell Material, Plating	Cable Opening [diameter]	Cable Opening [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Applications	Insert Material	Connector Type	Color	Voltage Rating	Current Rating (Amps)	Primary Material	Shielding	Ingress Protection
Switchcraft Inc. EN3L8MCX	8	Backshell, Cable Clamp	Free Hanging (In-Line)	UL94 V-0	Crimp	Copper Alloy	Gold	Keyed	Thermoplastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Elastomer	Male Pins, Receptacle	Black	250 VAC	6.5 A	Plastic	Unshielded	IP66/IP68
Switchcraft Inc. EN3L8MX	8	Backshell, Cable Clamp	Free Hanging (In-Line)	UL94 V-0		Copper Alloy	Gold	Keyed	Thermoplastic	4.06 mm, 6.73 mm	0.16 in, 0.265 in	65 °C	-40 °C	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Elastomer	Male Pins, Receptacle	Black	250 VAC	6.5 A	Plastic	Unshielded	IP66/IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

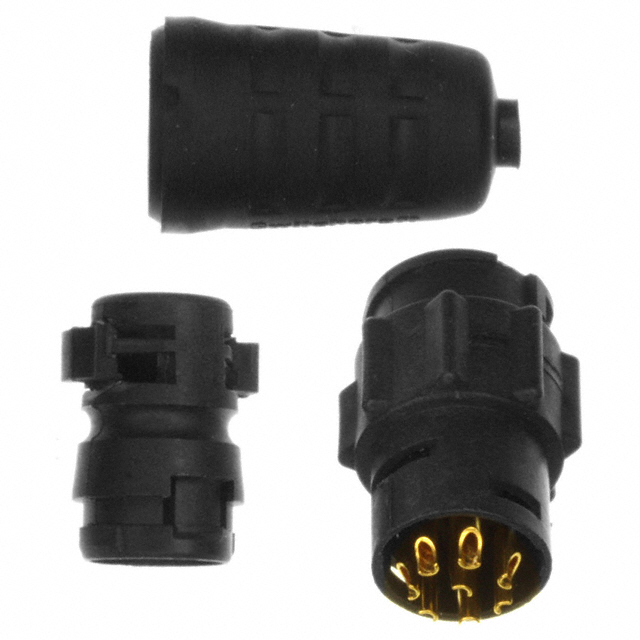

8 Position Circular Connector Receptacle, Male Pins Solder Cup
