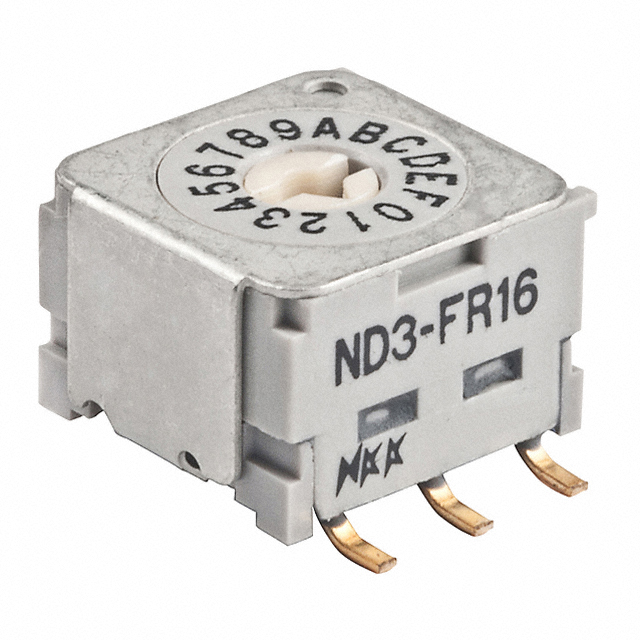

ND3FR16P

NKK Switches

SWITCH ROTARY DIP HEX 0.1A 5V

Search across all available documentation for this part.

NKK Switches

SWITCH ROTARY DIP HEX 0.1A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	ND3FR16P

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	Hexadecimal
Contact Finish	Gold
Contact Material	Beryllium Copper
Current Rating (Amps)	100 mA
Electrical Life	20000 Steps
Features	Epoxy Sealed Terminals
Length [x]	8.13 mm
Length [x]	0.32 in
Mechanical Life	20000 Cycles
Mounting Type	Surface Mount
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	True

Part	Features	Contact Finish	Body Material	Circuit	Current Rating (Amps)	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Voltage Rating	Termination Style	Electrical Life	Contact Material	Mounting Type	Actuator Type	Mechanical Life	Number of Positions	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board	Height Above Board
NKK Switches ND3FR16B	Epoxy Sealed Terminals	Gold	Polyamide (PA) Nylon Glass Filled	Hexadecimal	100 mA	0.1 in	Full	2.54 mm	8.13 mm	0.32 in	5 V	Gull Wing	20000 Steps	Beryllium Copper	Surface Mount	Rotary for Tool	20000 Cycles	16	Flush Recessed	-25 °C	85 °C
NKK Switches ND3FR16P	Epoxy Sealed Terminals	Gold	Polyamide (PA) Nylon Glass Filled	Hexadecimal	100 mA	0.1 in	Full	2.54 mm	8.13 mm	0.32 in	5 V	Gull Wing	20000 Steps	Beryllium Copper	Surface Mount	Rotary for Tool	20000 Cycles	16	Flush Recessed	-25 °C	85 °C
NKK Switches ND3FR16H	Epoxy Sealed Terminals	Gold	Polyamide (PA) Nylon Glass Filled	Hexadecimal	100 mA	0.05 in		1.27 mm	8.13 mm	0.32 in	5 V	Gull Wing	20000 Steps	Beryllium Copper	Surface Mount Right Angle	Rotary for Tool	20000 Cycles	16	Flush Recessed	-25 °C	85 °C	8.03 mm	0.316 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC
