LB15WKW01-FJ

Active

NKK Switches

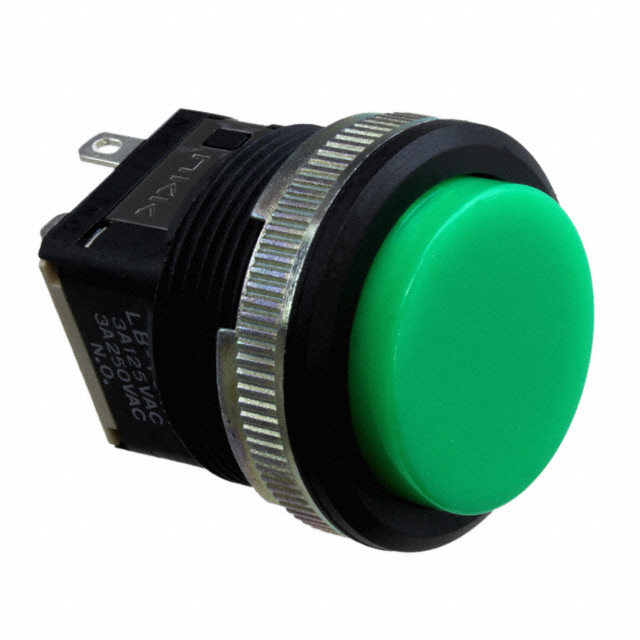

SWITCH PUSH BUTTON ON (ON) SPDT ROUND BUTTON 3A 250VAC MOMENTARY PANEL MOUNT QUICK CONNECT/SOLDER LUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LB15WKW01-FJ

Active

NKK Switches

SWITCH PUSH BUTTON ON (ON) SPDT ROUND BUTTON 3A 250VAC MOMENTARY PANEL MOUNT QUICK CONNECT/SOLDER LUG

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB15WKW01-FJ

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB15WKW Series

Part	Electrical Life	Mechanical Life	Circuit	Voltage Rating - AC	Mounting Type	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Type	Actuator Marking	Current Rating (Amps)	Actuator Type	Termination Style	Termination Style	Termination Style	Illumination Type, Color	Ingress Protection	Voltage Rating - DC	Illumination Voltage (Nominal)
NKK Switches LB15WKW01-01-CJ	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	50 °C	-25 °C	Red	Illuminated Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm	Neon Red	IP65 - Dust Tight Water Resistant	30 V
NKK Switches LB15WKW01-00-BJ	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	70 °C	-25 °C	White	Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm		IP65 - Dust Tight Water Resistant	30 V
NKK Switches LB15WKW01-FJ	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	70 °C	-25 °C	Green	Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm		IP65 - Dust Tight Water Resistant	30 V
NKK Switches LB15WKW01-JF	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	70 °C	-25 °C	Clear	Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm		IP65 - Dust Tight Water Resistant	30 V
NKK Switches LB15WKW01-5F05-JB	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	50 °C	-25 °C	Clear	Illuminated Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm	Green LED	IP65 - Dust Tight Water Resistant	30 V	5 VDC
NKK Switches LB15WKW01-5C24-JC	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	50 °C	-25 °C	Clear (Red Filter/Diffuser)	Illuminated Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm	LED Red	IP65 - Dust Tight Water Resistant	30 V	24 V
NKK Switches LB15WKW01-5C12-JC	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	50 °C	-25 °C	Clear (Red Filter/Diffuser)	Illuminated Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm	LED Red	IP65 - Dust Tight Water Resistant	30 V	12 VDC
NKK Switches LB15WKW01-5F12-JB	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	50 °C	-25 °C	Clear	Illuminated Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm	Green LED	IP65 - Dust Tight Water Resistant	30 V	12 VDC
NKK Switches LB15WKW01/UC-5F-JB	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	50 °C	-25 °C	Clear	Illuminated Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm	Green LED	IP65 - Dust Tight Water Resistant	30 V	2.1 VDC
NKK Switches LB15WKW01-01-JC	100000 Cycles	1000000 Cycles	SPDT	125 V	Panel Mount Front	22 mm	On-Mom	50 °C	-25 °C	Clear (Red Filter/Diffuser)	Illuminated Standard	No Marking	3 A	Button Round	0.11 in	Quick Connect Solder	2.8 mm	Neon Red	IP65 - Dust Tight Water Resistant	30 V
