Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ISA071V2 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 160 mA, 400 mA |
| Main Purpose | AC/DC, Non-Isolated |
| Outputs and Type | 2 |
| Outputs and Type | Non-Isolated |
| Power - Output | 4 W |
| Supplied Contents | Board(s) |
| Utilized IC / Part | VIPer16 |
| Voltage - Output | -5V, 7V, 12V, 5V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 38.64 | |
Description
General part information
STEVAL-ISA071V2 Series

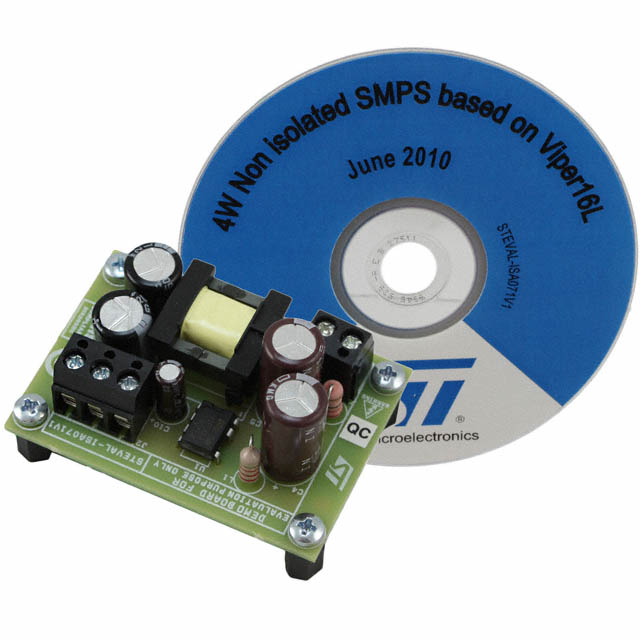

The STEVAL-ISA071V2 demonstration board is a non-insulated SMPS capable of delivering a 4 W output over a wide input voltage range and is designed for a mains application requiring -5 V and +7 V, referred to neutral.
The basic concepts used in this design can also be applied for higher power outputs or different voltage ranges.
The SMPS generates outputs of 5 V and 12 V, referred to the output marked -5 V. The 5 V output is dedicated to supplying an MCU. This configuration allows the use of the MCU to directly drive a Triac (referred to neutral).
